Auto-Compaction

Auto-Compaction settings determine the compaction process; whereby databases and their respective view-indexes are compacted. These settings can only be established by Full and Cluster Administrators.

Accessing the Auto-Compaction Settings

Auto-Compaction is enabled by default for all Couchbase buckets. However, settings can be overridden on a per bucket basis.

To access the Auto-Compaction settings:

  • For a new bucket: Access the Buckets screen provided by the Couchbase Web Console. Left-click on the Add Bucket button:

    addBucketButton

    When the Add Data Bucket dialog appears, add appropriate data into the initial fields; then left-click on the Advanced bucket settings tab:

    show advanced settings

    The dialog now expands, and displays additional configuration-options. Access the Auto-Compaction panel, and check the Override the default auto-compaction settings? checkbox:

    override default auto compaction

    The dialog expands again, and displays Auto-Compaction settings available for this bucket.

  • For an existing bucket: Left-click on the information-row for the bucket, on the Buckets screen of the Couchbase Web Console. When the Edit button appears, left-click on it:

    edit bucket definition button

    This brings up the Edit Bucket Settings dialog: left-click on the Show advanced bucket settings tab. Access the Auto-Compaction panel, and check the Override the default auto-compaction settings? checkbox. The dialog expands, thereby showing the available Auto-Compaction settings.

  • For all buckets for which no override is specified: Left-click on the Settings tab, in the vertical navigation-bar at the left-hand side. When the Settings screen appears, left-click on the Auto-Compaction tab, on the horizontal control-bar at the top:

    auto compaction tab

    This brings up the Auto-Compaction screen.

Establishing Auto-Compaction Settings

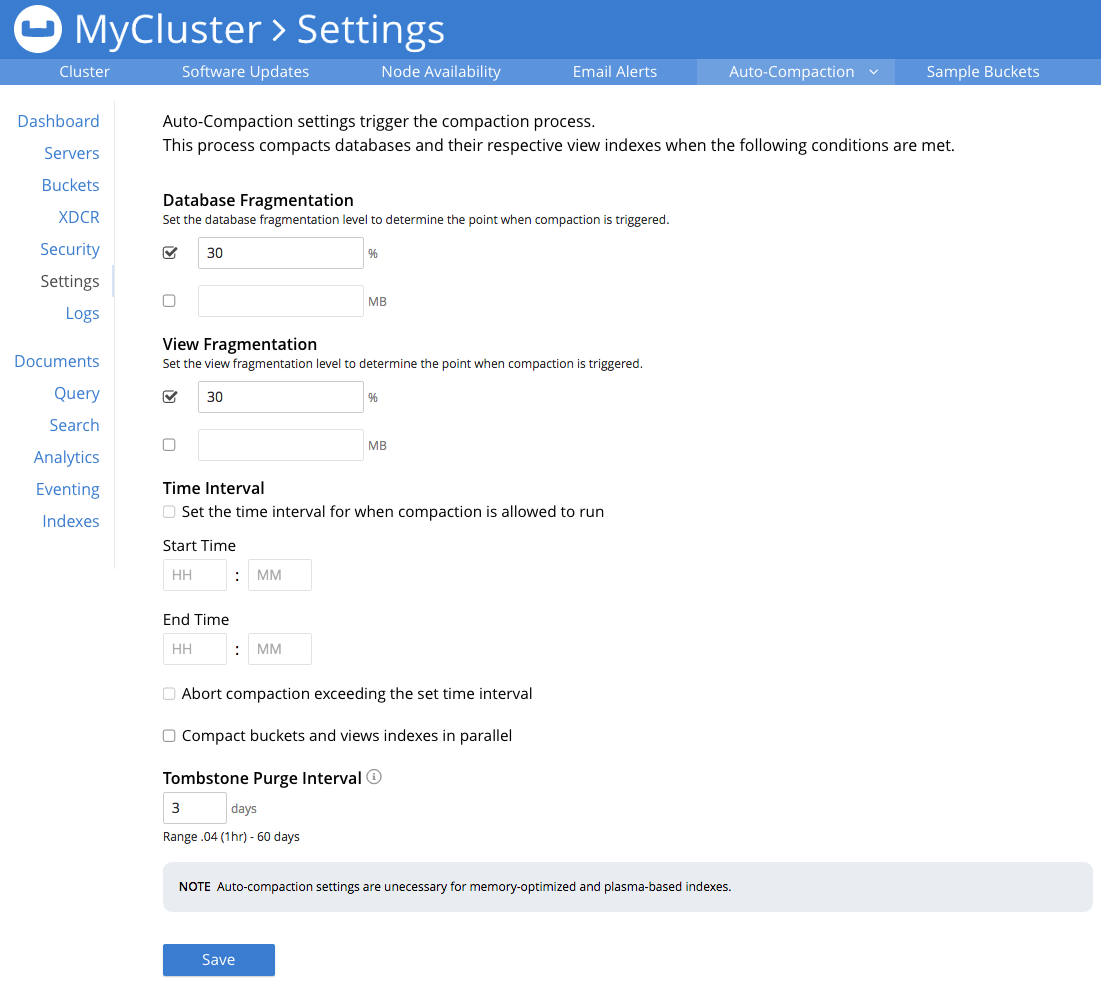

The Auto-Compaction view of the Settings screen appears as follows.

auto compact defaultNewUI

All settings on this screen are also provided on the dialogs whereby you establish custom-settings for an individual new or existing bucket.

Settings constitute conditions, which must be met for the compaction-process to be triggered. The settings are described below.

Database Fragmentation

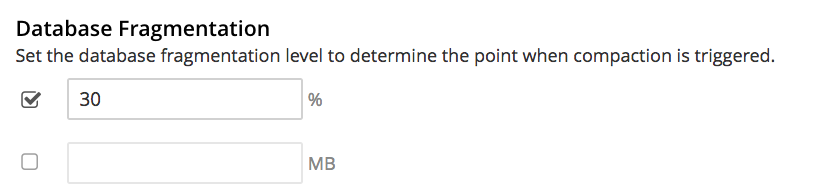

The Database Fragmentation panel appears as follows:

database fragmentationNewUI

Compaction is triggered when database-fragmentation reaches the point specified by means of this interface. You can specify the fragmentation-level as a percentage (the upper field, selected by checking the adjacent checkbox); or as a number of megabytes (the lower).

View Fragmentation

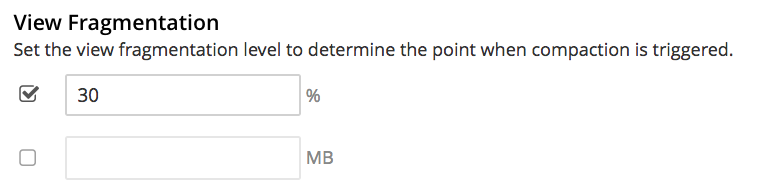

The View Fragmentation panel appears as follows:

view fragmentation interface

Compaction is triggered when view-fragmentation reaches the point specified by means of this interface. You can specify the fragmentation-level as a percentage (the upper field, selected by checking the adjacent checkbox); or as a number of megabytes (the lower).

Time Interval

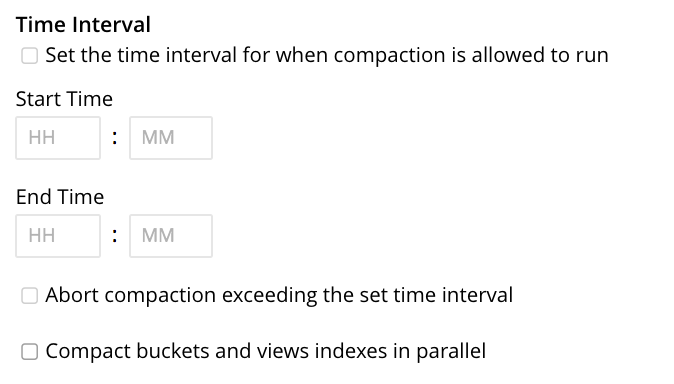

The Time Interval pane provides a number of settings whereby compaction is scheduled:

time interval interface

To set a time-interval during which compaction is permitted to run, check the checkbox at the top of the pane. Then, add a start and an end time into the interactive fields. Note that each left-hand field specifies the hour-of-the-day; while each right-hand specifies the minute-of-the-hour.

Checkboxes are provided to allow you to specify: first, that compaction can be aborted if the specified time is exceeded; secondly, that database and view compaction are executed simultaneously (implying a heavier processing and disk I/O load, during the compaction-process).

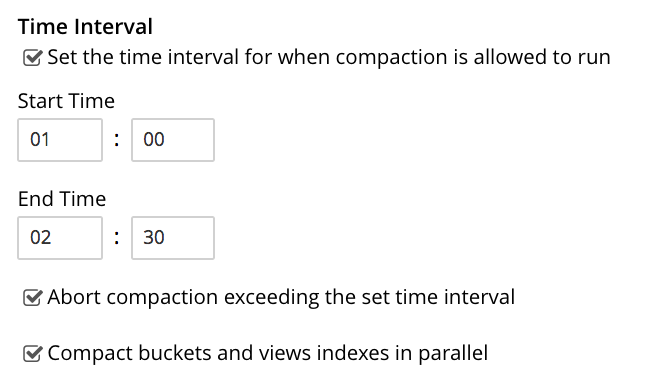

For example, the following, completed Time Interval pane specifies that compaction should run between 1:00 am and 2:30 am; should be aborted if not completed in time; and should feature parallel compaction of database and indexes:

time interval interface completed

Tombstone Purge Interval

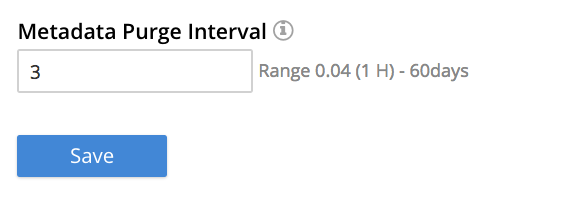

Sets the frequency of the tombstone (metadata) purge interval. The default value is three days. The panel appears as follows:

meta data purge interface

Tombstones are records of expired or deleted items. They include key and metadata. Tombstones are used in Couchbase Server to provide eventual consistency of data between clusters. The auto-compaction process waits for the specified number of days before permanently deleting tombstones for expired or deleted items. The default value is three days. The recommended range of values is 0.04 to 60 (where 0.04 equals one hour, and 1 equals one day.

Note that if you set this value too low, you may see inconsistent results in views queries, such as deleted items in a result set. You may also see inconsistent items in clusters with XDCR set up between the clusters. If you set this value too high, it will delay the server from reclaiming disk space.

For more information, see Storage.

Using the REST API

Note that Auto-Compaction settings can also be modified using the Couchbase REST API.
