Metering Couchbase Resources In OpenShift

    +
    A tutorial for configuring Couchbase in OpenShift to use Metering for querying and reporting resource usage over an arbitrary period time.

    Tutorials are accurate at the time of writing but rely heavily on third party software. Tutorials are provided to demonstrate how a particular problem may be solved. Use of third party software is not supported by Couchbase. For further help in the event of a problem, contact the relevant software maintainer.

    Overview

    This tutorial describes how to use the Autonomous Operator in conjunction with the Metering Operator within OpenShift.

    The Metering Operator is available as an open source framework. Overall project information and status can be discovered from the GitHub repository:

    Required

    The following is required to follow the steps of this tutorial:

    • OpenShift 4.3 or higher is required since the Operator Lifecycle Manager (OLM) is the recommended installation method.

    • 3 or more OpenShift nodes with at least 4 CPU’s and 8 GB

    • A StorageClass for dynamic volume provisioning for persisting historical metrics.

    Installing The Metering Operator

    The Metering Operator can be installed using OLM. Prepare a new project for installing the Metering Operator.

    $ oc new-project cb-metering

    Install the Metering Operator into the cb-metering project using OLM. Open the OperatorHub tab within OpenShift and search for metering.

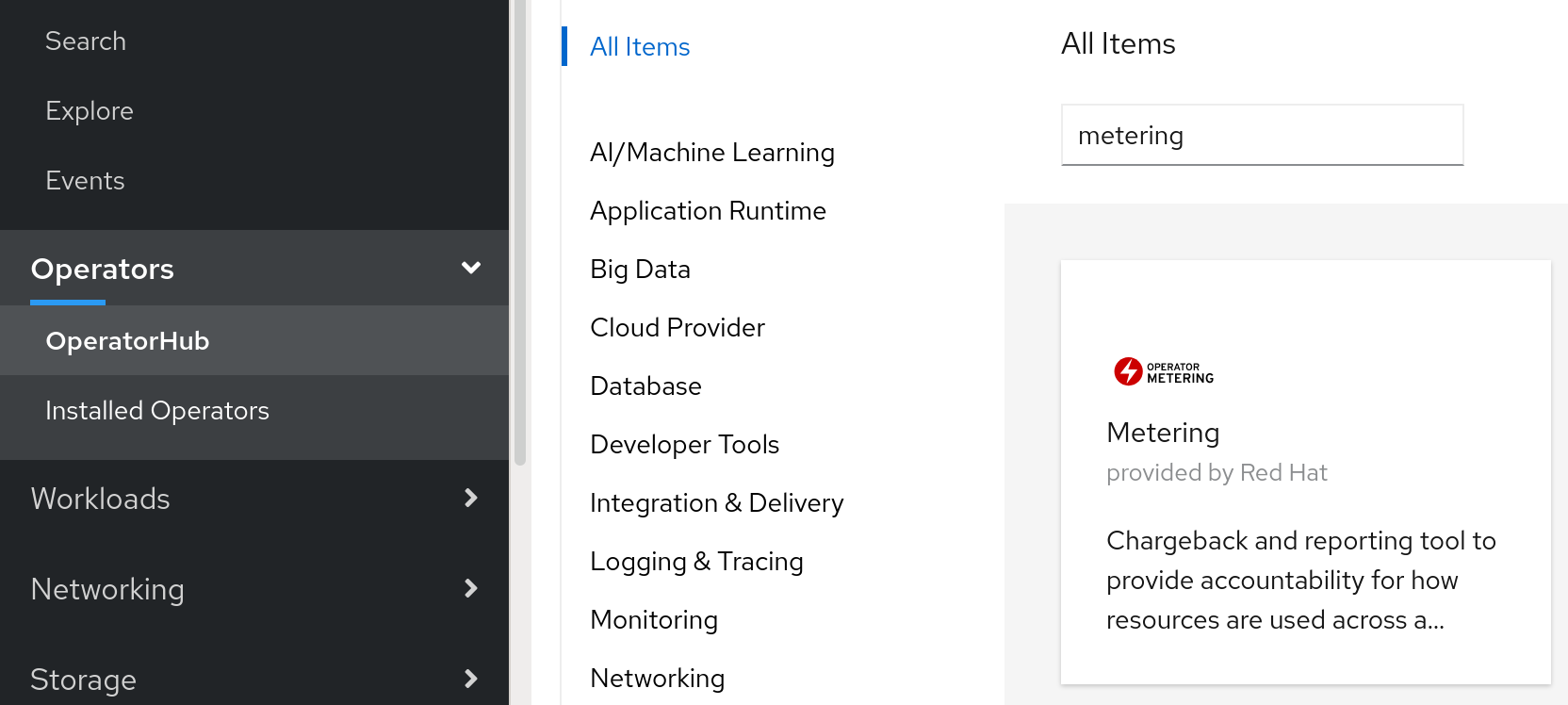

    metering olm install
    Figure 1. OLM Metering install

    Click through the deployment steps and select cb-metering as the Installed Namespace.

    Create a Couchbase Cluster

    Visit the OpenShift Operator Hub and install the Couchbase Autonomous Operator into the the cb-metering project. When the Couchbase Autonomous Operator is installed, create an instance of the Couchbase Cluster using all of the default values.

    Setting up Metering Storage

    The Metering Framework requires storage for persisting collected metrics and storing reports. For the purposes of this tutorial, a PersistentVolumeClaim is manually created to request a PersistentVolume from a storage. List the storage classes available in your OpenShift cluster.

    $ oc get storageclass

    This tutorial will use the storage class named default. Best practices require the use of a storage class with ReadWriteMany access mode. Check the Kubernetes storage documentation for environments which support this access mode:

    Create a PersistentVolumeClaim to request a disk that is 5GB in size with ReadWriteMany access. In the event that this mode is not available ReadWriteOnce may be used for experimental purposes.

    apiVersion: v1
    kind: PersistentVolumeClaim
    metadata:
      name: cb-metering-pvc
    spec:
      accessModes:
      - ReadWriteMany
      storageClassName: default
      resources:
        requests:
          storage: 5Gi

    In the event that your OpenShift installation doesn’t provide a storage class, Metering can be configured to use Cloud Provided Storage.

    Configuring The Metering Operator

    Navigate to the Metering Configuration Custom Resource in the Provided APIs section of the installed Operator page. Click on the Create MeteringConfig button.

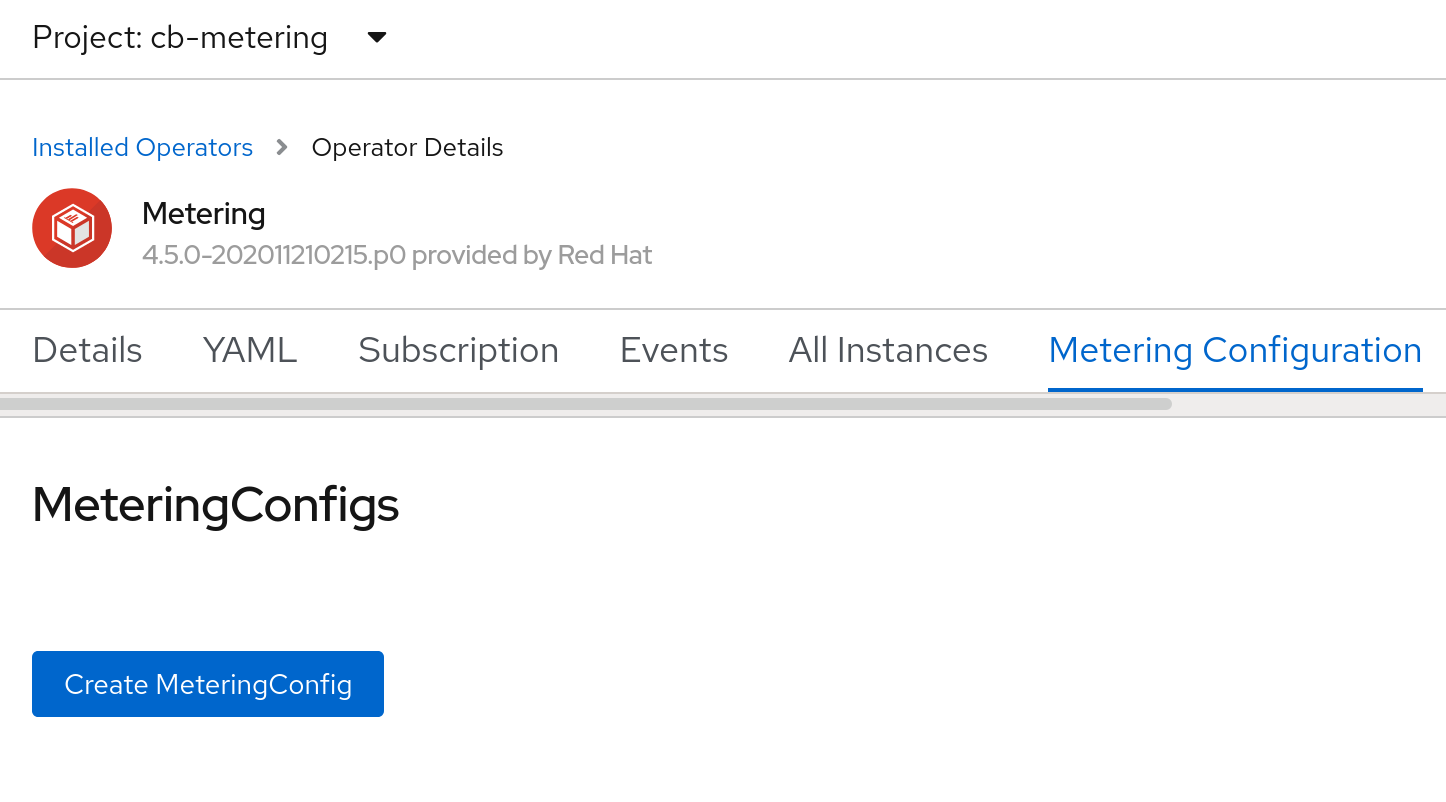

    metering create config
    Figure 2. Create Metering Configuration

    Input the following yaml as the MeteringConfig resource and then click the Create button:

    apiVersion: metering.openshift.io/v1
    kind: MeteringConfig
    metadata:
      name: operator-metering
      namespace: cb-metering
    spec:
      storage:
        hive:
          sharedPVC:
            claimName: "cb-metering-pvc" (1)
          type: "sharedPVC"
        type: hive
    1 claimName must match the name of the created PersistentVolumeClaim.

    New MeteringConfig resources cause the Metering Operator to kick off an Ansible script to setup the Metering Framework. Check the Metering Operator logs to monitor the configuration progress:

    $ oc logs deploy/metering-operator -c operator

    When the process is complete you will be able to get available ReportQuery and ReportDataSource resources:

    $ oc get reportquery
    $ oc get reportdatasources

    Report Generation

    Default report generation allows for usage collection against the resource metric API. The following steps will guide you through collecting Pod compute usage against a Couchbase Cluster.

    Create a Report Query

    Metering uses Report queries to fetch metrics being stored inside of report data sources. The default report data source is Presto which provides a SQL like database for querying metrics. Example Report queries already exist which can be re-used for Couchbase purposes. To get Pod compute usage for Couchbase specific pods, edit the pod-cpu-usage ReportQuery object.

    $ oc edit reportquery pod-cpu-usage

    Add the following AND clause to the editable report query:

    apiVersion: metering.openshift.io/v1
    kind: ReportQuery
    metadata:
      name: couchbase-pod-cpu-usage (1)
        ...
        AND pod LIKE 'cb-example-%' (2)
        GROUP BY namespace, pod, node
    1 Use a different name for the report query spec.
    2 Restrict query to report only on Pods which match the default Couchbase Cluster named cb-example.
    Save yaml as a different file with the name couchbase-pod-cpu-usage.yaml. Do not overwrite the original resource when saving this change. The Metering Operator will undo any changes made to the default resources.

    Create the updated report query resource:

    oc create -f couchbase-pod-cpu-usage.yaml

    Report Generation

    Metering Reports generate resource usage over start and end timestamps. Reports rely on ReportQuery resources for requesting data within the desired time period.

    The following creates a Report named couchbase-pod-cpu-usage which uses the Pod compute usage Query created from the previous step.

    apiVersion: metering.openshift.io/v1
    kind: Report
    metadata:
      name: couchbase-pod-cpu-usage
      namespace: "cb-metering"
    spec:
      reportingStart: '2020-12-10T20:00:19Z' (1)
      reportingEnd: '2021-10-20T00:00:19Z'
      query: "couchbase-pod-cpu-usage" (2)
      schedule:
        period: "cron"
        cron:
          expression: '*/10 * * * *' (3)
    1 reportingStart can be any timestamp prior to cluster to creation. If you decide to use a timestamp after cluster creation then be aware that some reporting data may be lost.
    2 query refers to the ReportQuery resource which selects Pod Compute usage from Couchbase only.
    3 The report is scheduled to run every 10 seconds.

    Check that the report status shows that the query is Finished.

    $ oc describe report couchbase-pod-cpu-usage

    Reports can be scheduled to run periodically. Refer to the Report Guide for available options when scheduling reports.

    Viewing the Report

    The report is ready to be downloaded with the status has changed to Finished. Run the following command to view data from the couchbase-pod-cpu-usage report:

    export METERING_NAMESPACE=cb-metering
    METERING_ROUTE_HOSTNAME=$(oc -n $METERING_NAMESPACE get routes metering -o json | jq -r '.status.ingress[].host')
    TOKEN=$(oc -n $METERING_NAMESPACE serviceaccounts get-token reporting-operator)
    curl -H "Authorization: Bearer $TOKEN" -k "https://$METERING_ROUTE_HOSTNAME/api/v1/reports/get?name=couchbase-pod-cpu-usage&namespace=$METERING_NAMESPACE&format=csv" (1)
    1 Setting report generation to csv format

    The result shows a report for Couchbase Pod compute usage at 10 minute intervals within the requested time frame.

    period_start,period_end,pod,namespace,node,pod_usage_cpu_core_seconds
    2020-12-07 22:50:00 +0000 UTC,2020-12-07 23:00:00 +0000 UTC,cb-example-0000,cb-metering3,cluster-wt5q9-worker-eastus3-b2rbg,95.214000
    2020-12-07 22:50:00 +0000 UTC,2020-12-07 23:00:00 +0000 UTC,cb-example-0001,cb-metering3,cluster-wt5q9-worker-eastus1-g79d6,83.406060
    2020-12-07 22:50:00 +0000 UTC,2020-12-07 23:00:00 +0000 UTC,cb-example-0002,cb-metering3,cluster-wt5q9-worker-eastus2-rxxvc,89.368200
    ...
    2020-12-07 23:40:00 +0000 UTC,2020-12-07 23:50:00 +0000 UTC,cb-example-0001,cb-metering3,cluster-wt5q9-worker-eastus1-g79d6,64.375320
    2020-12-07 23:40:00 +0000 UTC,2020-12-07 23:50:00 +0000 UTC,cb-example-0002,cb-metering3,cluster-wt5q9-worker-eastus2-rxxvc,61.297320

    The key metric here is pod_usage_cpu_core_seconds which represents total Compute Core seconds used by each Pod. This metric is defined as:

    (# of CPU cores) * (% total utilization) * (total time in seconds)

    It helps to understand what these values mean from a percentage standpoint to get a sense of what sort of load is being applied to the nodes before passing this report into a cost analysis system. For this particular cluster, each node has 4 Cores. Therefore the percent utilization can be calculated for cb-example-0000 in the initial interval using the following calculation:

    (% total utilization ) = 95.214000 / (4 * 600)
    (% total utilization ) = 3.9%

    At this point you may choose to add a business integration layer which understands cost analysis based on core seconds to make further use of generated reports.
