Cluster Operations

Cluster operations include starting, stopping, adding nodes, and removing the server from the cluster.

Never stop or restart Couchbase Server before you first remove that node from a cluster.

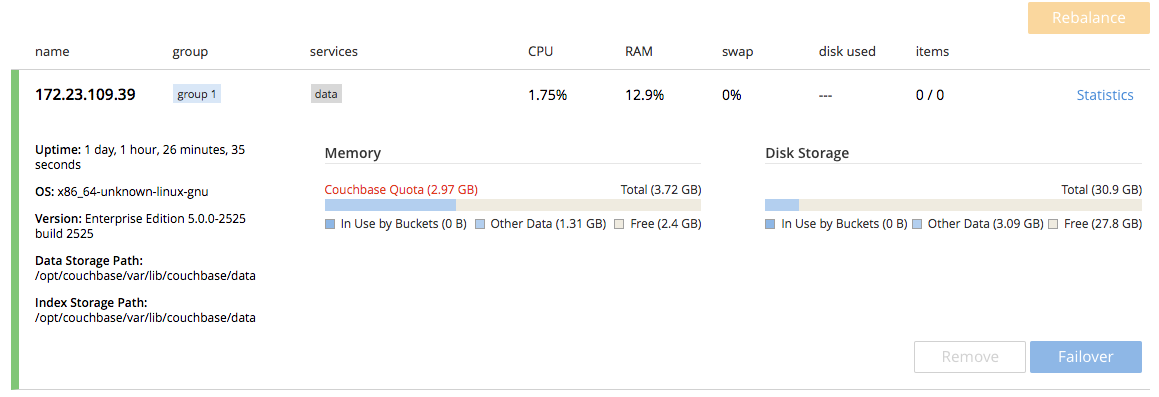

The Servers menu indicates overall server information for the cluster. Click the server name (IP address) to view the server details such as uptime, operating system, Couchbase Server version, data storage path, and Index Storage path.

To search through the server list, click Filter and enter the server name in the field.
To manage server groups, click Groups. For more information, see Manage Server Groups.
To add a new server, click Add Server. For more information, see Adding a Node.

Table 1. Server Details
Field	Description
name / group	The server IP address and the group name this server belongs to.
services	The running services on this server. The options are data, full text, index, and query.
CPU	The CPU usage on this server.
RAM	The total RAM on this server.
swap	The swap information on this server.
disk used	The total disk space used on this server.
items	The number of items processed on this server.
Statistics	Click Statistics link to view stats details on this server. For more information, see Monitoring Statistics.

Limits

Couchbase Server specifies limits and limitations that may affect server usage and implementation. Depending on the size of the documents passed to the view engine, the performance of Couchbase Server may be affected.

Limit Default Value Description

Limit	Default Value	Description
Max key length	250 bytes	The maximum length of the document ID (key).
Max value size	20 MB	The maximum size of the JSON document.
Max buckets per cluster	10	The maximum number of buckets in a cluster. See section for information on how to update the maximum number of buckets in a cluster.
Max view key size	4096 bytes	The maximum size of the key (first attribute) in the `emit()` function.
Max doc size for indexing	20 MB	The maximum size of a document that can be indexed. The default value is set to 20 MB to ensure that all documents get indexed. In Couchbase Server version 2.x and earlier, the view engine enforced a limit of 1MB on documents that can be indexed. As a result, when the size of a document exceeded the limit, the view engine (in version 2.x) did not index that document.
Max UI-editable document size	1 MB	The maximum supported size of a document that can be edited by means of the Couchbase Web Console UI. String-values whose size is greater than 486 KB are not displayed.
Max key-value size per document	1 MB	The maximum byte size allowed to be emitted for a single document and per view. This value is the sum of the sizes of all emitted keys and values. If a document emits a key-value pair that exceeds the specified maximum key-value size per document, an error is logged and that document is not indexed.
Function timeout	1000 ms	The maximum duration (in milliseconds) to execute all the MapReduce functions in a design document against a single document (map function) or against a list of map values or reductions (reduce or rereduce function). If the execution time for a document exceeds the specified value, the execution is aborted and that document is not indexed.
Sub-document path length	1024 bytes	The maximum length of a sub-document path that may be used in one of the sub-document operations.
Sub-document path nesting level	32	The maximum number of levels a path may reference in sub-document operations.

Max key length

250 bytes

The maximum length of the document ID (key).

Max value size

20 MB

The maximum size of the JSON document.

Max buckets per cluster

The maximum number of buckets in a cluster. See section for information on how to update the maximum number of buckets in a cluster.

Max view key size

4096 bytes

The maximum size of the key (first attribute) in the emit() function.

Max doc size for indexing

20 MB

The maximum size of a document that can be indexed. The default value is set to 20 MB to ensure that all documents get indexed.

In Couchbase Server version 2.x and earlier, the view engine enforced a limit of 1MB on documents that can be indexed. As a result, when the size of a document exceeded the limit, the view engine (in version 2.x) did not index that document.

Max UI-editable document size

1 MB

The maximum supported size of a document that can be edited by means of the Couchbase Web Console UI. String-values whose size is greater than 486 KB are not displayed.

Max key-value size per document

1 MB

The maximum byte size allowed to be emitted for a single document and per view. This value is the sum of the sizes of all emitted keys and values.

If a document emits a key-value pair that exceeds the specified maximum key-value size per document, an error is logged and that document is not indexed.

Function timeout

1000 ms

The maximum duration (in milliseconds) to execute all the MapReduce functions in a design document against a single document (map function) or against a list of map values or reductions (reduce or rereduce function). If the execution time for a document exceeds the specified value, the execution is aborted and that document is not indexed.

Sub-document path length

1024 bytes

The maximum length of a sub-document path that may be used in one of the sub-document operations.

Sub-document path nesting level

The maximum number of levels a path may reference in sub-document operations.
