Logging

The Logging facility allows a record to be maintained of important events that occur on Couchbase Server.

Logging Overview

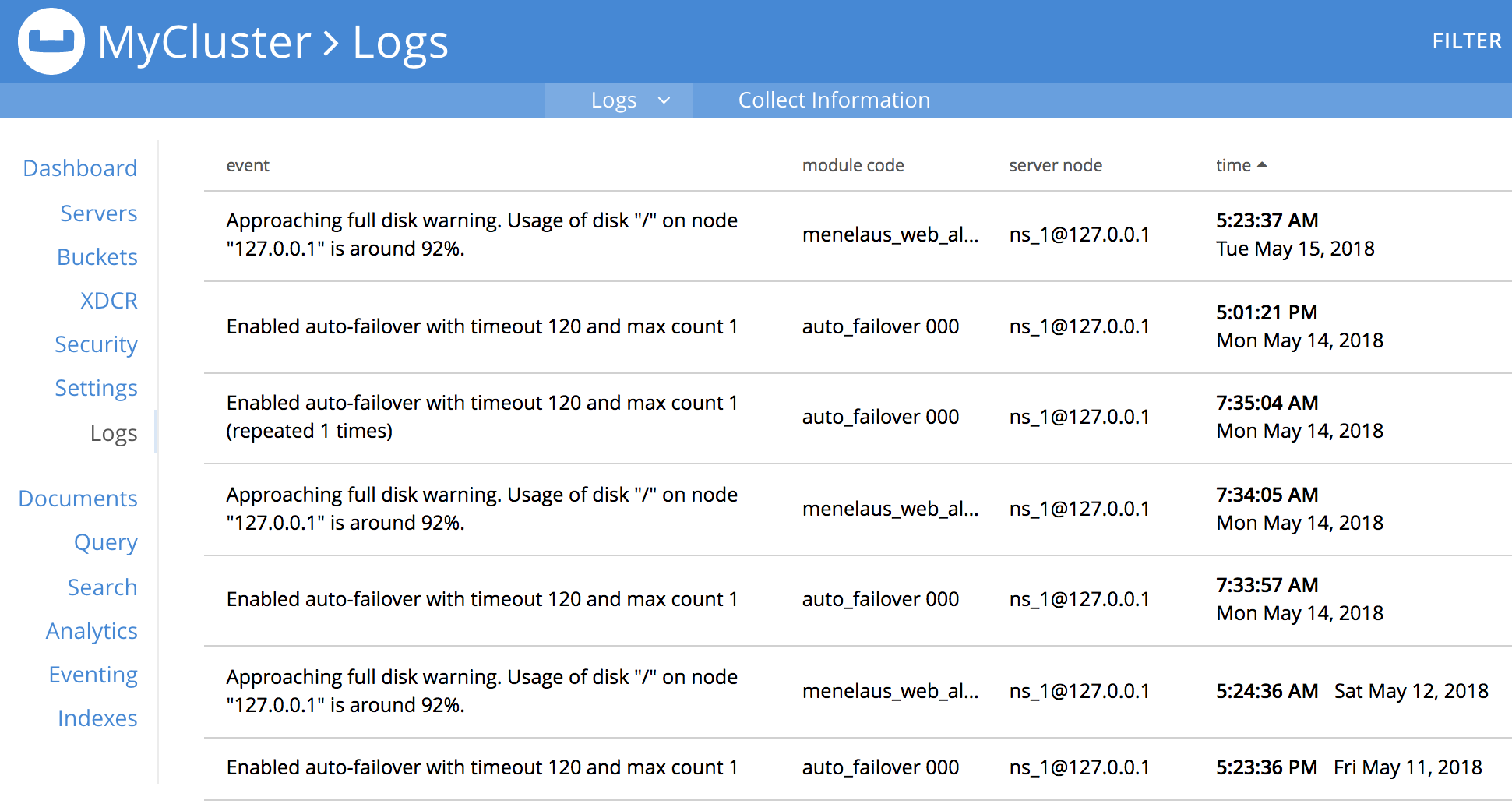

The Couchbase Logging facility records important events, and saves the details to log files, on disk. Additionally, subsets of information are provided on the Logs screen, in Couchbase Web Console. This may appear as follows:

loggingScreenBasic

By default, on Linux systems, log files are saved to /opt/couchbase/var/lib/couchbase/logs; on MacOS, to /Users/`username/Library/Application Support/Couchbase/var/lib/couchbase/logs`; and on Windows, to C:\Program Files\Couchbase\Server\var\lib\couchbase\logs.

Collecting Information

On each node within a Couchbase Server-cluster, logging is performed continuously. A subset of the results can be reviewed in the Couchbase Web Console Logs screen; while all details are saved to the logs directory, as described above. (Note that the logs directory may include audit.log. This is a special log file, used to manage cluster-security, and is handled separately from the other log files. The information provided throughout the remainder of this page — on collecting, uploading, and redacting — does not apply to audit.log. For information on audit.log, see Auditing.)

Additionally, explicit logging can be performed by the user. This allows comprehensive and fully updated information to be generated as required. The output includes everything currently on disk, together with additional data that is gathered in real time. Explicit logging can either be performed for all nodes in the cluster, or for one or more individual nodes. The results are saved as zip files: each zip file contains the log-data generated for an individual node.

Explicit logging can be performed by means of the Couchbase CLI utility cbcollect_info. The documentation for this utility, provided here, includes a complete list of the log files that can be created, and a description of the contents of each.

Explicit logging can also be performed by means of Couchbase Web Console: on the Logs page, left-click on the Collect Information tab, located near the top.

collectInfo

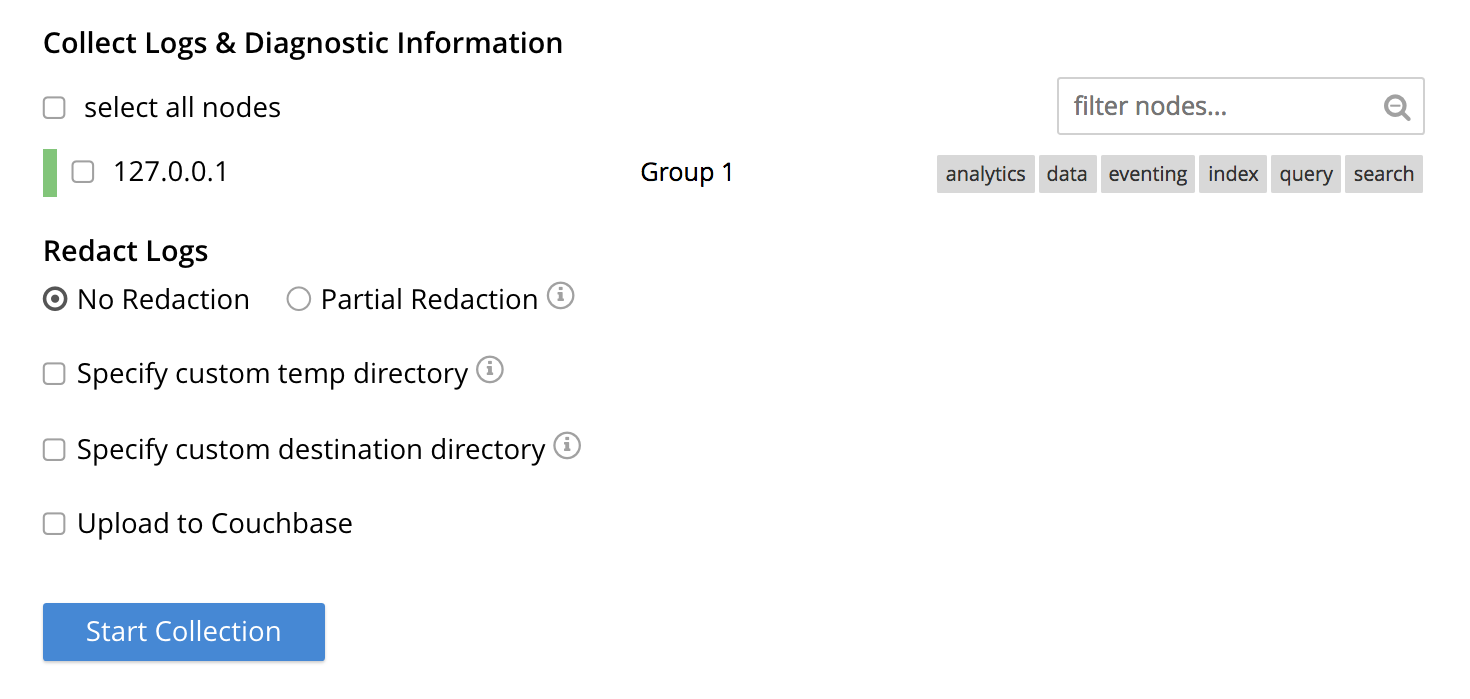

This brings up the Collect Information screen:

collectInformationScreen

This allows logs and diagnostic information to be collected either from all or from selected nodes within the cluster. It also allows a Log Redaction Level to be specified (this is described in Applying Redaction, below). The Specify custom temp directory checkbox can be checked to specify the absolute pathname of a directory into which data is temporarily saved, during the collection process. The Specify custom destination directory can be checked to specify the absolute pathname of a directory into which the competed zip files are saved.

The Upload to Couchbase checkbox is described in Uploading Log Files, below.

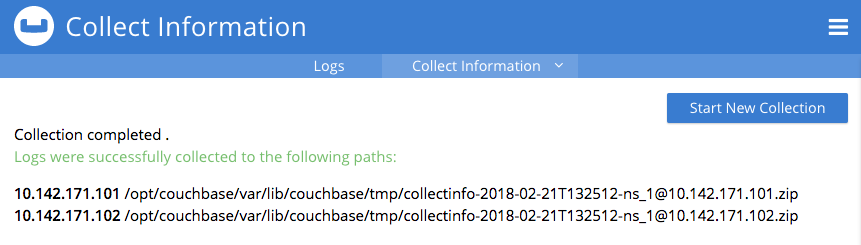

To start the collection-process, left-click on the Start Collection button. A notification is displayed, indicating that the collection-process is running. When the process has completed, the following information is displayed:

collectInformationComplete

As this indicates, a set of log files has been created for each node in the cluster. Each file is saved as a zip file in the stated temporary location.

Uploading Log Files

Log files can be uploaded to Couchbase, for inspection by Couchbase Support.

For information on performing upload at the command-prompt, see cbcollect_info. To upload by means of Couchbase Web Console, before starting the collection-process, check the Upload to Couchbase checkbox:

uploadToCouchbaseCheckbox

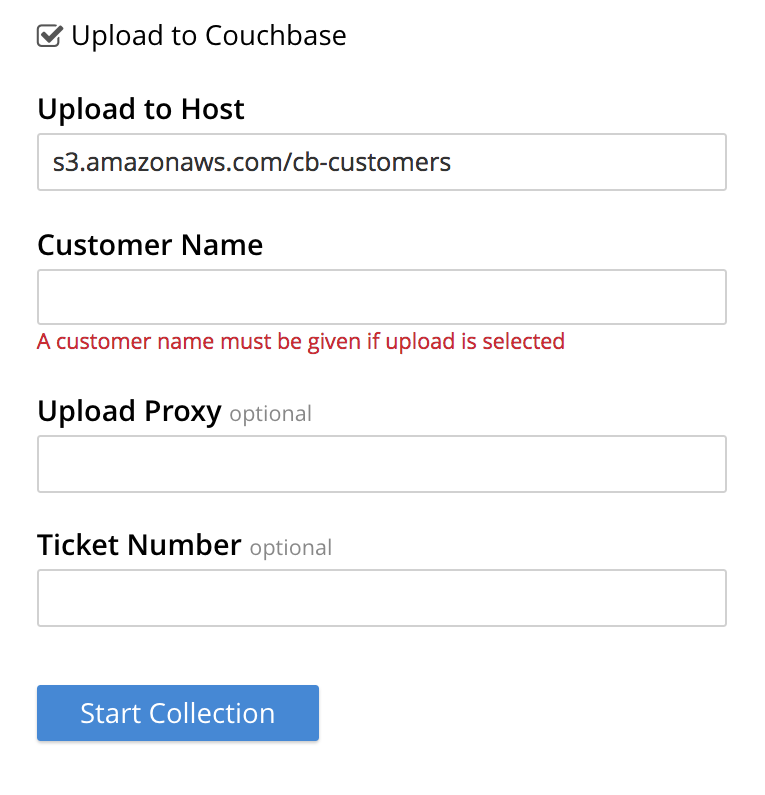

The display changes to the following:

uploadToCouchbaseDialogBasic

The dialog now features an Upload to Host field, which contains the server-location to which the customer-data is uploaded. Fields are also provided for Customer Name (required) and Ticket Number (optional). The Upload Proxy field optionally takes the hostname of a remote system, which contains the directory specified by the pathname.

Left-click on the Start Collection button. When collection is complete, a notification provides the URL of the uploaded zip file.

Understanding Redaction

Optionally, log files can be redacted. This means that user-data, considered to be private, is removed. Such data includes:

  • Key/value pairs in JSON documents

  • Usernames

  • Query-fields that reference key/value pairs and/or usernames

  • Names and email addresses retrieved during product registration

  • Extended attributes

This redaction of user-data is referred to as partial redaction. (Full redaction, which will be available in a forthcoming version of Couchbase Server, additionally redacts meta-data.)

In each modified log file, encrypted text (achieved with SHA1) is substituted for redacted text. For example, the following log-file fragment displays private data — a Couchbase username:

0ms [I0] {2506} [INFO] (instance - L:421) Effective connection string:
couchbase://127.0.0.1?username=Administrator&console_log_level=5&;.
Bucket=default

The redacted version of the log file might appear as follows:

0ms [I0] {2506} [INFO] (instance - L:421) Effective connection string:
<UD>e07a9ca6d84189c1d91dfefacb832a6491431e95</UD>.
Bucket=<UD>e16d86f91f9fd0b110be28ad00e348664b435e9e</UD>

Note that redaction may eliminate some parameters containing non-private data, as well as all parameters containing private.

Note also that redaction of log files may have one or both of the following consequences:

  • Logged issues will be found harder to diagnose, by both the user and Couchbase Support.

  • Log-collection is significantly more time-consumptive, since redaction is performed at collection-time.

Applying Redaction

Redaction of log files saved on the cluster can be applied as required, when performing explicit logging, by means of either cbcollect_info or the Logs facility of Couchbase Web Console.

For information on performing explicit logging with redaction at the command-prompt, see cbcollect_info.

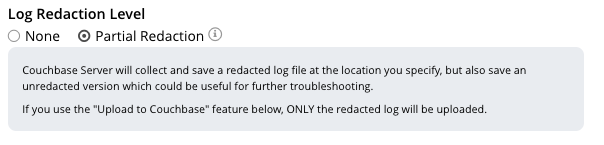

To perform explicit logging with redaction by means of Couchbase Web Console, before starting the collection-process, access the Log Redaction Level panel, on the Collect Information screen. This features two radio-buttons, labelled None and Partial Redaction. Make sure the Partial Redaction radio-button is selected. Guidance on redaction is displayed below it:

partialRedactionSelection

Left-click on the Start Collection button. A notification explains that the collection-process is now running. When the process has completed, a further notification appears, specifying the location (local or remote) of each created zip file. Note that, when redaction has been specified, two zip files are provided for each node: one file containing redacted data, the other unredacted data.

Redacting Log Files Outside the Cluster

Certain Couchbase technologies — such as cbbackupmgr, the SDK, connectors, and Mobile — create log files saved outside the Couchbase Cluster. These can be redacted by means of the command-line tool cblogredaction. Multiple log files can be specified simultaneously. Each file must be specified as plain text. Optionally, the salt to be used in encryption can be automatically generated.

For example:

$ cblogredaction /Users/username/testlog.log -g -o /Users/username -vv
2018/07/17T11:27:06 WARNING: Automatically generating salt. This will make it difficult to cross reference logs
2018/07/17T11:27:07 DEBUG: /Users/username/testlog.log - Starting redaction file size is 19034284 bytes
2018/07/17T11:27:07 DEBUG: /Users/usernae/testlog.log - Log redacted using salt: <ud>COeAtexHB69hGEf3</ud>
2018/07/17T11:27:07 INFO: /Users/username/testlog.log - Finished redacting, 50373 lines processed, 740 tags redacted, 0 lines with unmatched tags

For more information, see the corresponding man page, or run the command with the --h (help) option.
