Monitor Statistics

      +
      From the Data Bucket menu, information and statistics about buckets and nodes is displayed for the entire Couchbase Server cluster. The information is aggregated from all the server nodes within the configured cluster for the selected bucket.

      From the Couchbase Web Console > Buckets menu, click the Statistics link for each bucket. Each bucket page shows different graphs and statistics as explained below:

      • Bucket Selection - The Buckets selection list lets you select which of the buckets configured on your cluster is to be used as the basis for the graph display. The statistics shown are aggregated over the whole cluster for the selected bucket.

      • Server Selection - The All Server Nodes selection option enables you to limit the display to an individual server or entire cluster. The individual node selection displays information for the node. The all server nodes selection displays information for the entire cluster.

      • Interval Selection - The Interval selection at the top of the main graph changes interval display for all graphs displayed on the page. For example, selecting Minute shows information for the last minute, continuously updating.

        As the selected interval increases, the amount of statistical data displayed will depend on how long your cluster has been running.

      • Statistic Selection - All of the graphs within the display update simultaneously. Clicking on any of the smaller graphs will promote that graph to be displayed as the main graph for the page.

      Individual Bucket Monitoring

      Bucket monitoring within the Couchbase Web Console has been updated to show additional detailed information. The following statistic groups are available for Couchbase bucket types.

      • Summary - The summary section provides a quick overview of the cluster activity.

      • Server Resources - This section provides information on the server resources across the cluster.

      • vBucket Resources - This section provides detailed information on the vBucket resources across the cluster, including the active, replica and pending operations.

      • Disk Queues - Disk queues show the activity on the backend disk storage used for persistence within a data bucket. The information displayed shows the active, replica and pending activity.

      • DCP Queues - This section provides show information about the DCP connections activity for the bucket.

      • View Stats - This section lets you monitor the statistics for each production view configured within the bucket or system.

      • Index Statistics - This section provides statistics about the GSI Indexes. Statistics are provided per each individual index.

      • Query Statistics - This section provides statistics about the N1QL query service. These statistics are aggregated numbers at the query service level across the cluster, and are not per bucket or per node.

      • XDCR Destination - The XDCR Destination section show you statistical information about the Cross Datacenter Replication (XDCR), if XDCR has been configured.

      • Top Keys - This section shows a list of the top 10 most actively used keys within the selected data bucket.

      For Memcached bucket types, the Memcached statistic summary is provided.

      Bucket Monitoring — Summary Statistics

      The summary section is designed to provide a quick overview of the cluster activity. Each graph (or selected graph) shows information based on the currently selected bucket.

      web console server stats summary

      The following statistics are available:

      Statistic Description

      ops per second

      The total number of operations per second on this bucket.

      cache miss ratio

      Ratio of reads per second to this bucket which required a read from disk rather than RAM.

      gets per sec.

      Number of get operations per second from this bucket.

      sets per sec.

      Number of set operations per second to this bucket.

      deletes per sec.

      Number of delete operations per second for this bucket.

      CAS ops per sec.

      Number of operations with a CAS identification per second for this bucket.

      active docs resident %

      The percentage of active items cached in RAM in this bucket.

      items

      Number of unique items (documents) stored in the bucket.

      temp OOM per sec.

      Number of temporary out of memory conditions per second.

      low water mark

      Low water mark for this bucket (based on the configured bucket RAM quota).

      high water mark

      High water mark for this bucket (based on the configured bucket RAM quota).

      memory used

      The memory used as measured from mem_used.

      disk creates per sec.

      Number of new items created on disk per second for this bucket.

      disk updates per sec.

      Number of items updated on disk per second for this bucket.

      disk reads per sec.

      Number of reads per second from disk for this bucket.

      disk write queue

      Number of items waiting to be written on disk in this bucket.

      docs data size

      Size of the stored document data.

      docs total disk size

      Size of the persisted stored document data on disk.

      doc fragmentation %

      Document fragmentation of persisted data as stored on disk.

      total disk size

      Total size of the information for this bucket as stored on disk, including persisted and view index data.

      view data size

      Size of the view data information.

      views total disk size

      Size of the view index information as stored on disk.

      views fragmentation %

      Percentage of fragmentation for a given view index.

      view reads per sec.

      Number of view reads per second.

      disk update time

      The time required to update data on disk.

      disk commit time

      The time required to commit data on disk.

      bg wait time

      The average background fetch time in microseconds.

      Incoming XDCR ops/sec.

      The incoming XDCR operations per second for this bucket.

      Intra-replication queue

      Number of items remaining to be sent to consumer in this bucket.

      outbound XDCR mutations

      Number of mutations to be replicated to other clusters. This chart is displayed only if the selected bucket is a source for ongoing replication.

      N1QL queries/sec

      Number of N1QL requests processed per second.

      index data size

      The data size consumed by the index.

      index disk size

      The total disk sized consumed by the index.

      index fragmentation %

      The percentage fragmentation of the index.

      index scanned/sec

      Number of index items scanned by the indexer per second.

      fts bytes indexed/sec

      Number of full text search bytes indexed per second.

      fts queries/sec

      Number of full text search queries per second.

      fts disk size

      The total full text search disk size for this bucket.

      avg active drift/mutation

      Average drift (in seconds) per mutation on active vBuckets.

      avg replica drift/mutation

      Average drift (in seconds) per mutation on replica vBuckets.

      active ahead exceptions/sec

      Total number of ahead exceptions all active vBuckets.

      replica ahead exceptions/sec

      Total number of ahead exceptions all replica vBuckets.

      Monitoring Server Resources

      The Server Resources statistics section displays the resource information on this server including swap usage, free RAM, CPU utilization percentage, connections, port requests, streaming requests, index RAM used, remaining index RAM, and FTS RAM used.

      web console server stats serverresource

      The displayed statistics are:

      Statistic Description

      swap usage

      The amount of swap space in use on this server.

      free RAM

      The amount of RAM available on this server.

      Max CPU utilization %

      The percentage of CPU in use across all available cores on this server.

      connections

      The number connections on this server.

      port requests/sec

      The rate of HTTP requests on this port.

      streaming requests

      The number of streaming requests.

      streaming wakeups/sec

      The number of streaming request wakeups.

      Max index RAM used %

      The percentage of index RAM in use across all indexes on this server.

      remaining index RAM

      The amount of index RAM available on this server.

      FTS RAM used

      The amount of RAM used by FTS on this server.

      Monitoring vBucket Resources

      The vBucket statistics provide information for all vBucket types within the cluster across three different states. Within the statistic display the table of statistics is organized in four columns, showing the Active, Replica and Pending states for each individual statistic. The last column provides the total value for each statistic.

      web console server stats vbucket

      The Active column displays the information for vBuckets within the Active state. The Replica column displays the statistics for vBuckets within the Replica state (that is currently being replicated). The Pending columns shows statistics for vBuckets in the Pending state, that is while data is being exchanged during rebalancing.

      These states are shared across all the following statistics. For example, the graph new items per sec within the Active state column displays the number of new items per second created within the vBuckets that are in the active state.

      The individual statistics, one for each state, shown are:

      Statistic Description

      vBuckets

      The number of vBuckets within the specified state.

      items

      Number of items within the vBucket of the specified state.

      resident %

      Percentage of items within the vBuckets of the specified state that are resident (in RAM).

      new items per sec.

      Number of new items created in vBuckets within the specified state.

      The new items per second is not valid for the Pending state.

      ejections per sec.

      Number of items ejected per second within the vBuckets of the specified state.

      user data in RAM

      Size of user data within vBuckets of the specified state that are resident in RAM.

      metadata in RAM

      Size of item metadata within the vBuckets of the specified state that are resident in RAM.

      Monitoring Disk Queues

      The Disk Queues statistics section displays the information for data being placed into the disk queue. Disk queues are used within Couchbase Server to store the information written to RAM on disk for persistence. Information is displayed for each of the disk queue states, Active, Replica, and Pending.

      web console server stats diskqueues

      The Active column displays the information for the Disk Queues within the Active state. The Replica column displays the statistics for the Disk Queues within the Replica state (that is currently being replicated). The Pending columns shows statistics for the disk Queues in the Pending state, that is while data is being exchanged during rebalancing.

      These states are shared across all the following statistics. For example, the graph fill rate within the Replica state column displays the number of items being put into the replica disk queue for the selected bucket.

      The displayed statistics are:

      Statistic Description

      items

      The number of items waiting to be written to disk for this bucket for this state.

      fill rate

      The number of items per second being added to the disk queue for the corresponding state.

      drain rate

      The number of items actually written to disk from the disk queue for the corresponding state.

      average age

      The average age of items (in seconds) within the disk queue for the specified state.

      Monitoring DCP Queues

      The DCP queues statistics are designed to show information about the DCP connections activity for the bucket. The statistics information is therefore organized as a table with columns showing the statistics for DCP queues used for replication, XDCR, views/indexes, and other.

      dcp queue stats

      The statistics are detailed below:

      Statistic Description

      DCP connections

      Number of internal replication DCP connections in this bucket.

      DCP senders

      Number of replication senders for this bucket.

      items remaining

      Number of items remaining to be sent to consumer in this bucket.

      drain rate items/sec

      Number of items per second being sent for a producer for this bucket.

      drain rate bytes/sec

      Number of bytes per second being sent for replication DCP connections for this bucket.

      backoffs/sec

      Number of backoffs for replication DCP connections.

      Monitoring View Statistics

      The View Stats show information about individual design documents within the selected bucket. One block of stats will be shown for each production-level design document.

      web console server stats views

      The statistics shown are:

      Statistics Description

      data size

      Size of the data required for this design document.

      disk size

      Size of the stored index as stored on disk.

      view reads per sec.

      Number of read operations per second for this view.

      Monitoring Index Statistics

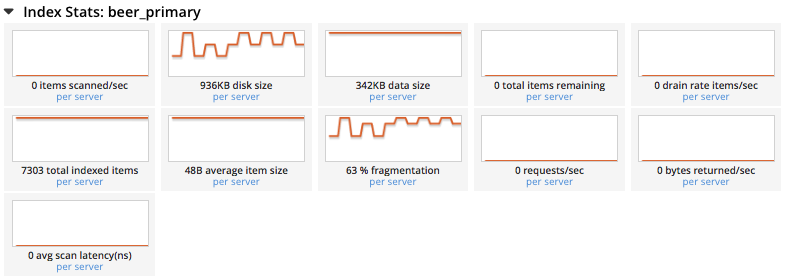

      The INDEX STATS section provides statistics about the GSI Indexes. Statistics are provided per each individual index.

      index queue stats6.0

      The statistics in this section are detailed below:

      Statistic Description

      items scanned/sec

      Number of index items scanned by the indexer per second.

      disk size

      Total disk file size consumed by the index.

      data size

      Actual data size consumed by the index.

      memory used

      Total memory consumed by the index storage.

      total mutations remaining

      Number of documents pending to be indexed.

      drain rate items/sec

      Number of documents indexed by the indexer per second.

      total indexed items

      The total number of documents indexed.

      average item size

      The average size of each index item.

      % fragmentation

      Percentage fragmentation of the index. This indicates the % of disk space consumed by the index, but not utilized for items stored in the index. Note that at small index sizes of less than a hundred kb, the statis overhead of the index disk file will inflate the index fragmentation percentage.

      requests/sec

      Number of requests served by the indexer per second.

      bytes returned/sec

      Number of bytes per second read by a scan.

      avg scan latency(ns)

      The average time to serve a scan request in nanoseconds.

      cache resident percent

      Percentage of index data resident in memory.

      index cache miss ratio

      Percentage of accesses made to this data from disk, rather than from RAM.

      Memcached Buckets

      For Memcached buckets, Web Console displays a separate group of statistics:

      web console server stats memcached

      The Memcached statistics are:

      Statistic Description

      ops per sec.

      Total operations per second serviced by this bucket.

      hit ratio

      Percentage of get requests served with data from this bucket.

      RAM used

      Total amount of RAM used by this bucket.

      items count

      Number of items stored in this bucket.

      evictions per sec.

      Number of items per second evicted from this bucket.

      sets per sec.

      Number of set operations serviced by this bucket.

      gets per sec.

      Number of get operations serviced by this bucket.

      bytes TX per sec

      Number of bytes per second sent from this bucket.

      bytes RX per sec.

      Number of bytes per second sent into this bucket.

      get hits per sec.

      Number of get operations per second for data that this bucket contains.

      delete hits per sec.

      Number of delete operations per second for data that this bucket contains

      incr hits per sec.

      Number of increment operations per second for data that this bucket contains.

      decr hits per sec.

      Number of decrement operations per second for data that this bucket contains.

      delete misses per sec.

      Number of delete operations per second for data that this bucket does not contain.

      decr misses per sec.

      Number of decrement operations per second for data that this bucket does not contain.

      get misses per sec.

      Number of get operations per second for data that this bucket does not contain.

      incr misses per sec.

      Number of increment operations per second for data that this bucket does not contain.

      CAS hits per sec.

      Number of CAS operations per second for data that this bucket contains.

      CAS badval per sec.

      Number of CAS operations per second using an incorrect CAS ID for data that this bucket contains.

      CAS misses per sec.

      Number of CAS operations per second for data that this bucket does not contain.

      Monitoring Query Statistics

      The Query section provides statistics about the N1QL query service. These statistics are aggregated numbers at the query service level across the cluster, and are not per bucket or per node.

      query queue stats

      The statistics in this section are detailed below:

      Statistic Description

      requests/sec

      Total number of N1QL requests processed per second.

      selects/sec

      Total number of SELECT requests processed per second.

      request time(sec)

      The average end-to-end time to process a query in seconds.

      service time(sec)

      The average time to execute a query in seconds.

      result size

      The average size in bytes of the data returned by the query.

      errors

      The total number of N1QL errors returned so far.

      warnings

      The total number of N1QL warnings returned so far.

      result count

      The average number of results (documents) returned by a query.

      queries > 250ms

      Number of queries that take longer than 250ms.

      queries > 500ms

      Number of queries that take longer than 500ms.

      queries > 1000ms

      Number of queries that take longer than 1000ms.

      queries > 5000ms

      Number of queries that take longer than 5000ms.

      invalid requests/sec

      Number of requests for unsupported endpoints per second.

      Monitoring Outgoing XDCR

      The Outgoing XDCR shows the XDCR operations that are supporting cross datacenter replication from the current cluster to a destination cluster.

      You can monitor the current status for all active replications in the Ongoing Replications section on the XDCR page:

      xdcr ongoing

      The Ongoing Replications pane shows the following information:

      Column Description

      Bucket

      The source bucket on the current cluster that is being replicated.

      Protocol

      The protocol version.

      From

      The source cluster name.

      To

      The destination cluster name.

      Filtered

      Indicates if the filtering is set or not.

      Status

      The current status of replications.

      When

      Indicates when replication occurs.

      The Status column indicates the current state of the replication configuration. The options include:

      • Starting Up - The replication process has just started, and the clusters are determining what data needs to be sent from the originating cluster to the destination cluster.

      • Replicating - The bucket is currently being replicated and changes to the data stored on the originating cluster are being sent to the destination cluster.

      • Failed - Replication to the destination cluster has failed. The destination cluster cannot be reached. The replication configuration may need to be deleted and recreated.

      From the Buckets menu, click the Statistics link for the Couchbase bucket to view more statistics for that bucket. Couchbase Web Console displays statistics for the particular bucket on this page. You can find two drop-down areas called in the Outgoing XDCR and Incoming XDCR Operations. Both provides statistics about ongoing replication for the particular bucket. Under the Outgoing XDCR panel, if you have multiple replication streams you will see statistics for each stream.

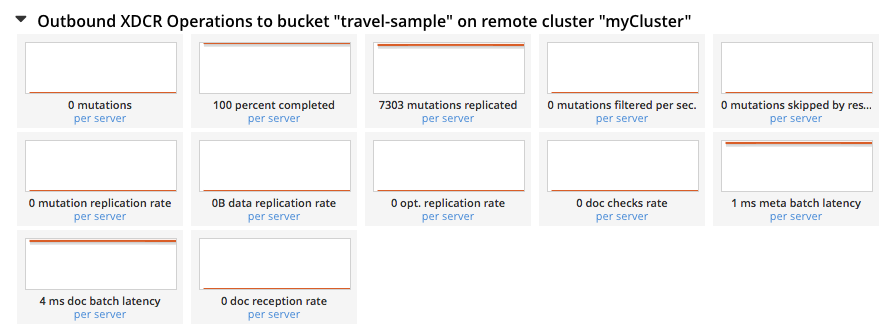

      outbound xdcr

      The statistics shown below may be different depending on the bucket data:

      Statistic Description

      outbound mutations

      Number of changes in the queue waiting to be sent to the destination cluster.

      mutations checked

      Number of document mutations checked on source cluster.

      mutations replicated

      Number of document mutations replicated to the destination cluster.

      data replicated

      Size of data replicated in bytes.

      active vb reps

      Number of parallel, active vBucket replicators. Each vBucket has one replicator which can be active or waiting. By default you can only have 32 parallel active replicators at once per node. Once an active replicator finishes, it will pass a token to a waiting replicator.

      waiting vb reps

      Number of vBucket replicators that are waiting for a token to replicate.

      secs in replicating

      Total seconds elapsed for data replication for all vBuckets in a cluster.

      secs in checkpointing

      Time working in seconds including wait time for replication.

      checkpoints issued

      Total number of checkpoints issued in replication queue. By default active vBucket replicators issue a checkpoint every 30 minutes to keep track of replication progress.

      checkpoints failed

      Number of checkpoints failed during replication. This can happen due to timeouts, due to network issues or if a destination cluster cannot persist quickly enough.

      mutations in queue

      Number of document mutations waiting in replication queue.

      XDCR queue size

      Amount of memory used by mutations waiting in replication queue. In bytes.

      mutation replication rate

      Number of mutations replicated to destination cluster per second.

      data replication rate

      Bytes replicated to destination per second.

      ms meta ops latency

      Weighted average time for requesting document metadata in milliseconds.

      mutations replicated optimistically

      Total number of mutations replicated with optimistic XDCR.

      ms docs ops latency

      Weighted average time for sending mutations to destination cluster in milliseconds.

      percent completed

      Percent of total mutations checked for metadata.

      Be aware that if you use an earlier version of Couchbase Server, such as Couchbase Server 2.0, only the first three statistics appear and have the labels changes queue, documents checked, and documents replicated respectively. You can also get XDCR statistics using the Couchbase REST API. All of the statistics in Web Console are based on statistics via the REST API or values derived from them.

      Monitoring Incoming XDCR

      The Incoming XDCR Operations section shows the XDCR operations that are coming into to the current cluster from a remote cluster.

      inbound xdcr web console

      The statistics shown are:

      Statistic Description

      metadata reads per sec.

      Number of documents XDCR scans for metadata per second. XDCR uses this information for conflict resolution.

      sets per sec.

      Set operations per second for incoming XDCR data.

      deletes per sec.

      Delete operations per second as a result of the incoming XDCR data stream.

      total ops per sec.

      Total of all the operations per second.
