Create a Replication

    An XDCR replication allows data to be replicated continuously from a specified bucket on the source cluster to a specified bucket on the target.

    Understanding Replications

    An XDCR replication is created on the cluster that is to be the source of the data-replication. Each replication uses a single reference, which has already been created. (See Create a Reference.) To create the replication, you specify:

    • The local, source bucket from which data is to be replicated.

    • The remote cluster to which data is to be replicated. This cluster must already be registered on the local cluster as a reference.

    • The bucket on the remote cluster to which data is to be replicated.

    • The XDCR protocol to be used.

    • Whether filtering should be used in replication, and if so, according to what regular expression.

    • Other Advanced Settings, which can be used to optimize replication-performance.

    Note that multiple replications (each using a different source-target bucket combination) can be created using a single reference (which refers to a target cluster, but not to any specific bucket on it).

    Examples on This Page

    The examples in the subsections below show how to create the same replication; using the UI, the CLI, and the REST API respectively. As their starting-point, the examples assume the scenario that concluded the page Create a Reference, this being:

    • Two clusters already exist; each containing a single node. These are named after their IP addresses: and

    • Each cluster contains a single bucket, which is the travel-sample bucket.

    • Each cluster has the Full Administrator username of Administrator, and password of password.

    • Cluster now has a reference that specifies its own travel-sample bucket as a source, and the travel-sample bucket on as a target.

    Create an XDCR Replication with the UI

    Proceed as follows:

    1. Access Couchbase Web Console. Left-click on the XDCR tab, in the left-hand navigation menu.

      left click on xdcr tab

      This displays the XDCR Replications screen, the lower part of the main panel of which is entitled Ongoing Replications:

      xdcr ongoing replications initial

      The list, which is designed to show the name and IP address or hostname of each existing replication, is currently empty, and so bears the notification There are no replications currently in progress.

    2. To start creating a replication, left-click on the Add Replication button:

      left click on add replication button

      This brings up the Add Replication dialog:

      xdcr add replication dialog
    3. Enter appropriate information into the fields of the Add Replication dialog. Specify as the target cluster, and travel-sample as both source and target bucket. Leave the XDCR Protocol as Version 2. At this stage, do not check the Enable advanced filtering checkbox, and do not elect to Show Advanced Settings.

      The completed dialog now appears as follows.

      xdcr add replication dialog complete

      Left-click on the Save button. The XDCR Replications screen is now redisplayed, with the appearance of the Ongoing Replications panel as follows:

      xdcr ongoing replications with replication

      This indicates that a replication is now in progress: from travel-sample on this cluster to bucket "travel-sample" on cluster "".

    This concludes creation of the replication.

    Advanced Filtering with the UI

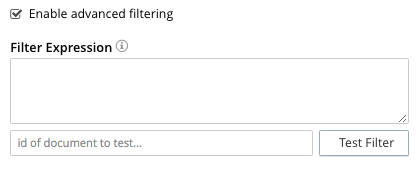

    Advanced Filtering can be enabled by checking the Enabled advanced filtering checkbox. The UI expands to reveal the following field:

    xdcr filter test initial

    One or more regular expressions, to be used as filters, can be entered into the Filter Expression field. The expression is matched against document keys within the source bucket. (Note that no match is attempted with document values.) If a match is successful, that document is replicated. Documents whose keys do not provide a match are not replicated.

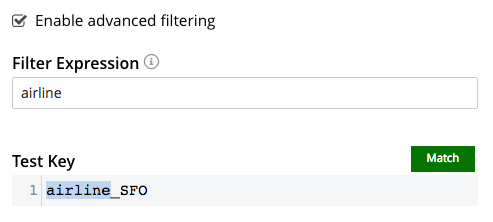

    Optionally, document keys can be entered into a Test Key field: hitting return produces successive fields, so any number of keys can be tested. If a match is successful, the orange No Match button is displayed in green, and signifies that a Match has been made:

    xdcr filter test complete

    Complete information on XDCR filtering is provided in XDCR Filtering.

    Advanced Settings with the UI

    Advanced Settings can be established by left-clicking on the Show Advanced Settings control, on the Add Replication dialog. The UI expands vertically, to reveal the following:

    xdcr advanced settings

    The values displayed in the fields are defaults, which can be modified interactively, and saved: this may help in achieving optimal replication-performance. For details on the significance of each field, see XDCR Advanced Settings.

    Create an XDCR Replication with the CLI

    Staring from the scenario defined above, in Examples on This Page, use the CLI xdcr-replicate command to create an XDCR replication, as follows:

    couchbase-cli xdcr-replicate -c \
    > -u Administrator \
    > -p password \
    > --create \
    > --xdcr-cluster-name \
    > --xdcr-from-bucket travel-sample \
    > --xdcr-to-bucket travel-sample \
    > --xdcr-replication-mode xmem

    If successful, this provides the following response:

    SUCCESS: XDCR replication created

    For more information, see the complete reference for the xdcr-replicate command. Note that this includes descriptions of all flags that support the Advanced Settings, described above.

    Create an XDCR Replication with the REST API

    Staring from the scenario defined above, in Examples on This Page, using the REST API’s POST /controller/createReplication HTTP method and URI, create an XDCR reference as follows:

    curl -v -X POST -u Administrator:password \
    > \
    > -d fromBucket=travel-sample \
    > -d toCluster= \
    > -d toBucket=travel-sample \
    > -d replicationType=continuous \
    > -d enableCompression=1

    If successful, this provides the following response:


    For more information, see Creating XDCR Replications. For information on REST-driven configuration of the Advanced Settings described above, see Managing Advanced XDCR Settings.

    Next Steps

    Once a replication has been defined and is therefore running, you can opt to pause it, in order to perform system maintenance. See Pause a Replication.
