Pause a Replication

Pausing an XDCR replication temporarily suspends the replication of data from the source bucket to the target.

Examples on This Page

The examples in the subsections below show how to pause the same replication; using the UI, the CLI, and the REST API respectively. As their starting-point, the examples assume the scenario that concluded the page Create a Replication.

Pause an XDCR Replication with the UI

Step 1: Access Couchbase Web Console. Left-click on the XDCR tab, in the left-hand navigation menu.

left click on xdcr tab

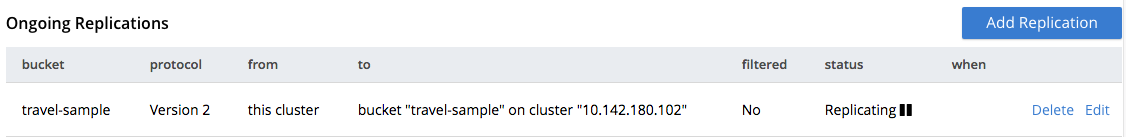

This displays the XDCR Replications screen. The lower part of the main panel, entitled Remote Clusters, currently has the following appearance:

xdcr ongoing replications with replication

This shows the single replication that is in progress. Note that the status column displays a status of Replicating, immediately adjacent to which is a pause symbol.

Step 2: To pause replication, simply left-click on the pause symbol:

xdcr left click on pause replication button before

This pauses the replication. The pause symbol changes to a start symbol:

xdcr left click on pause replication button after

Pause an XDCR Replication with the CLI

From the starting-point defined above, in Examples on This Page, use the CLI xdcr-replicate command to pause an XDCR replication as follows.

First, determine the stream-id of the replication that you wish to pause. Use xdcr-replicate with the --list option, in order to list all ongoing replications from the source cluster:

couchbase-cli xdcr-replicate -c 10.142.180.101 -u Administrator -p password \
--list

This produces the following output:

stream id: 570d0ca2db3b1e128e2fafd362a1bfd4/travel-sample/travel-sample
   status: paused
   source: travel-sample
   target: /remoteClusters/570d0ca2db3b1e128e2fafd362a1bfd4/buckets/travel-sample

The stream-id consists of three components, which are, in sequence:

  • 570d0ca2db3b1e128e2fafd362a1bfd4: The uuid of the reference.

  • travel-sample: The name of the source bucket.

  • travel-sample: The name of the target bucket.

With this information, to pause the replication, use the xdcr-replicate command with the --pause and --xdcr-replicator options, as follows:

couchbase-cli xdcr-replicate -c 10.142.180.101 \
-u Administrator \
-p password \
--pause \
--xdcr-replicator=570d0ca2db3b1e128e2fafd362a1bfd4/travel-sample/travel-sample

If successful, this returns the following:

SUCCESS: XDCR replication paused

The replication is now paused.

Pause an XDCR Replication with the REST API

From the starting-point defined above, in Examples on This Page, use the REST API to pause an XDCR replication as follows.

First, determine the id of the replication that you wish to pause. Use the /pools/default/tasks endpoint, to produce a list of tasks for the source cluster:

curl -i -X GET -u Administrator:password http://10.142.180.101:8091/pools/default/tasks

Formatted, the output is as follows:

[
  {
    "type": "rebalance",
    "status": "notRunning",
    "statusIsStale": false,
    "masterRequestTimedOut": false
  },
  {
    "cancelURI": "/controller/cancelXDCR/570d0ca2db3b1e128e2fafd362a1bfd4%2Ftravel-sample%2Ftravel-sample",
    "settingsURI": "/settings/replications/570d0ca2db3b1e128e2fafd362a1bfd4%2Ftravel-sample%2Ftravel-sample",
    "status": "running",
    "replicationType": "xmem",
    "continuous": true,
    "filterExpression": "",
    "id": "570d0ca2db3b1e128e2fafd362a1bfd4/travel-sample/travel-sample",
    "pauseRequested": false,
    "source": "travel-sample",
    "target": "/remoteClusters/570d0ca2db3b1e128e2fafd362a1bfd4/buckets/travel-sample",
    "type": "xdcr",
    "recommendedRefreshPeriod": 10,
    "changesLeft": 0,
    "docsChecked": 3111,
    "docsWritten": 0,
    "maxVBReps": null,
    "errors": []
  }
]

The value associated with the id key is the stream-id for the replication: featuring, in sequence, the id (570d0ca2db3b1e128e2fafd362a1bfd4) of the reference, the name of the source bucket (travel-sample), and the name of the target bucket (travel-sample).

Secondly, use the settings/replications URI with the pauseRequested flag set to true, to pause the replication:

curl -X POST -u Administrator:password \
> http://10.142.180.101:8091/settings/replications/570d0ca2db3b1e128e2fafd362a1bfd4%2Ftravel-sample%2Ftravel-sample \
>  -d pauseRequested=true

Note the encoded form of the endpoint, which is required. Formatted, the output is as follows:

{
  "checkpointInterval": 600,
  "compressionType": "Auto",
  "docBatchSizeKb": 2048,
  "failureRestartInterval": 10,
  "filterExpression": "",
  "logLevel": "Info",
  "networkUsageLimit": 0,
  "optimisticReplicationThreshold": 256,
  "pauseRequested": true,
  "sourceNozzlePerNode": 2,
  "statsInterval": 1000,
  "targetNozzlePerNode": 2,
  "type": "xmem",
  "workerBatchSize": 500
}

The replication is now paused.

For more information, see Pausing XDCR Replication Streams.

Next Steps

Once a replication has been paused, you can opt to resume it. See Resume a Replication.
