Introduction

  • how-to
    +
    The Couchbase Power BI Connector provides data visualization for the Couchbase platform, using Microsoft’s data visualization software.

    Overview

    The Couchbase Power BI Connector integrates Microsoft Power BI with the following Couchbase data sources:

    • Enterprise Analytics

    • Capella Analytics

    • Couchbase Server (Analytics Service)

    • Capella Operational (Analytics Service)

    The connector uses the Couchbase ODBC driver to connect to these data sources. You must first create an ODBC Data Source Name (DSN) for each data source you want to use in Power BI. The DSN defines the connection details such as the address, authentication method, and SSL settings. After you configure the DSN, use the Power BI connector to import data from your data source into Power BI or query it using DirectQuery.

    Couchbase Power BI Connector Flow Diagram
    Figure 1. Couchbase Power BI Connector Flow Diagram

    Prerequisites

    Before you begin, make sure you have the following:

    Component Requirement

    Enterprise Analytics

    • For on-premise deployments: A compatible server infrastructure.

    • For self-managed deployments: An account with your cloud provider.

    Capella Analytics

    • An existing Couchbase Capella account.

    Couchbase Server (Analytics Service)

    • Couchbase Server 7.2.4 or later.

    • The Analytics Service must be running on the target node.

    Capella Operational (Analytics Service)

    • An existing Couchbase Capella account.

    • The Analytics Service must be running on the target node.

    Power BI

    Install Power BI Desktop

    Before you start, install a supported version of Microsoft Power BI Desktop. The Couchbase Power BI Connector requires the Power BI Desktop version March 2017 or later.

    If necessary, download Power BI Desktop from the Microsoft downloads page.

    Power BI is only available for the Microsoft Windows platform; for other platforms, consider our Tableau connector.

    Install OpenSSL

    OpenSSL is a required dependency for the Couchbase ODBC driver.

    To install OpenSSL:

    1. Download OpenSSL 3.x for x64 (recommended version: OpenSSL 3.5.x Light — the current LTS version) from the Shining Light Productions site.

    2. Install OpenSSL from the downloaded file.

    3. Verify that Windows has installed SSL and registered the path of the binary. Open the command prompt (cmd), and enter the following:

      openssl version

    4. If the output indicates OpenSSL is not installed, rather than returning the version that you installed, you need to add the OpenSSL binary’s location to the PATH environment:

      1. Check C:\Program Files or use Find to locate the SSL binary — usually the path will be something like:

        C:\Program Files\OpenSSL-Win64\bin

      2. Add this path to the environmental variables list, found in System variables  Path.

      3. Now verify that Windows has registered the path of the binary. Once again, open the command prompt (cmd). It must be a fresh command prompt, as the earlier one will not have loaded the newly added environmental variables, and enter the following:

        openssl version

    Install the Couchbase ODBC Driver

    To install the Couchbase ODBC driver:

    1. Download couchbase-odbc-1.2.114-win64.msi from https://packages.couchbase.com/releases/couchbase-odbc-driver/1.2/couchbase-odbc-1.2.114-win64.msi. For more information, see Release Notes.

    2. Double-click the file to open the Couchbase ODBC Setup Wizard.

    3. Install the ODBC drivers from the downloaded file. This installation provides both ANSI and Unicode drivers.

    Install the Couchbase Power BI Connector

    To install the Power BI Connector:

    1. Download couchbase-powerbi-connector-1.2.101.mez from https://packages.couchbase.com/releases/couchbase-powerbi-connector/1.2/couchbase-powerbi-connector-1.2.101.mez. For more information, see Release Notes.

    2. Follow Microsoft’s guide on configuring a custom connector.

    Verify the Connector Installation

    To verify if the Couchbase Power BI Connector is installed correctly:

    1. Open Power BI Desktop.

    2. Go to Get Data.

    3. In the search box, enter Couchbase Connector.

    If the connector appears in the search results, it’s installed correctly.

    Get Connection Details and Certificates

    Before you configure the ODBC DSN, you must obtain the required connection details and certificates for your Couchbase data source. These details are necessary to establish a secure connection and allow Power BI to access the data in your Couchbase cluster.

    Couchbase strongly recommends that you secure your ODBC connection using SSL. This ensures encryption of the communication between Power BI and Couchbase.

    • Enterprise Analytics

    • Capella Analytics

    • Couchbase Server

    • Capella Operational

    For Enterprise Analytics, you need to obtain the root certificate.

    1. Sign in to the Enterprise Analytics Web Console as an Administrator.

    2. In the left-hand menu, select Security.

    3. From the top menu, select Certificates to view the security certificates.

      access ea root certificate

    4. In the Trusted Root Certificates section, copy the certificate text starting from BEGIN CERTIFICATE to END CERTIFICATE.

    5. Save the text to an accessible file location (for example, C:\Users\user\certificate.txt).

    You need this file when you configure the ODBC DSN.

    For Capella Analytics, you need to obtain the public connection string, add an allowed IP address, and create cluster access credentials.

    1. Sign in to the Capella UI as an Organization Owner or Project Owner.

    2. Go to Analytics and select your cluster from the list.

    3. Next, click Settings.

    4. In the left-hand menu, click Connection String.

    5. Make a note of the Public Connection String.

      get capella columnar connection string

    6. In the left-hand menu, click Allowed IP Addresses.

      • Add the IP address of the machine running Power BI to the allowlist.

      • To add your current IP address, use the Add Current IP Address option.

      • For more information, see Add an Allowed IP Address.

    7. In the left-hand menu, click Access Control.

      • Create a new access control account.

      • Enter a Cluster Access Name and Password and assign a role.

      • The account must have at least the sys_view_reader role.

      • For more information, see Create an Access Control Account.

    For Couchbase Server, you need to obtain the root certificate.

    1. Sign in to the Couchbase Server Web Console as an Administrator.

    2. In the left-hand menu, select Security.

    3. From the top menu, select Certificates to view the security certificates.

      access root certificate

    4. In the Trusted Root Certificates section, copy the certificate text starting from BEGIN CERTIFICATE to END CERTIFICATE.

    5. Save the text to an accessible file location (for example, C:\Users\user\certificate.txt).

    You need this file when you configure the ODBC DSN.

    For Capella Operational, you need to obtain the public connection string, add an allowed IP address, and create cluster access credentials.

    1. Sign in to the Capella UI as an Organization Owner or Project Owner.

    2. Go to Operational and select your cluster from the list.

    3. Next, go to Connect  SDKs.

    4. Make a note of the Public Connection String.

      copying connection string

    5. Add the IP address of the machine running Power BI to the allowlist.

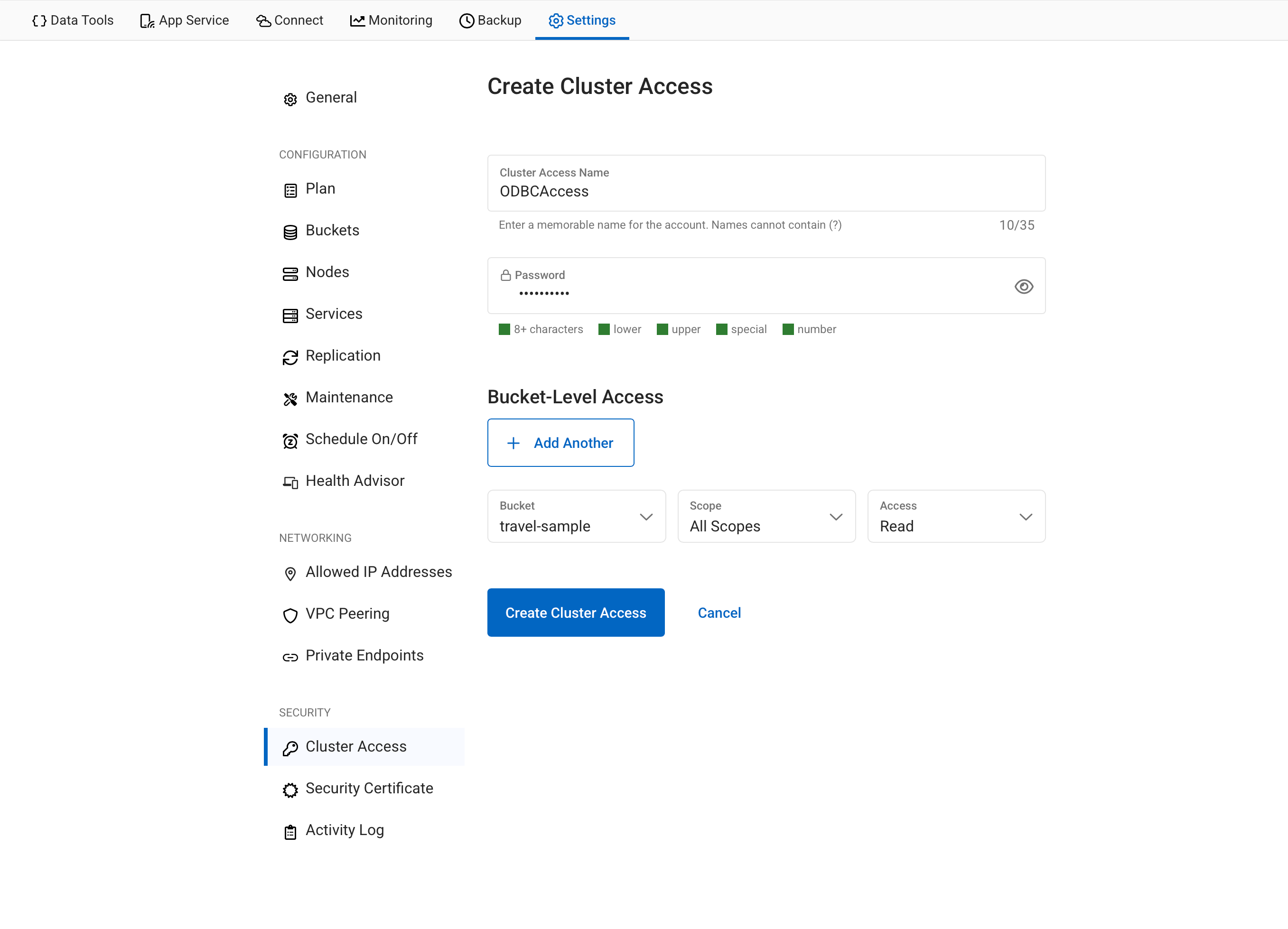

    6. Create new cluster access credentials.

      • Enter a Cluster Access Name and Password and configure the access level.

      • The account must have at least the Read or Analytics Read privilege.

      • For more information, see Create Cluster Access Credentials.

    Configure an ODBC Data Source

    To use a Couchbase data source in Power BI, you must configure an ODBC Data Source Name (DSN).

    During configuration, you can also enable logging for the ODBC driver. The driver saves the logs to the following directory: Documents\Power BI Desktop\Custom Connectors. The log file is named couchbase-odbc.

    Make sure to use the ODBC Data Source Administrator (64 bit). The 32-bit version is incompatible with the connector and will not work correctly.

    • Enterprise Analytics

    • Capella Analytics

    • Couchbase Server

    • Capella Operational

    1. Open the ODBC Data Source Administration tool.

    2. Go to User DSN  Add.

    3. Select the Couchbase ODBC Driver (either ANSI or Unicode) from the list, and then click Finish.

    4. Select the data source as Enterprise Analytics.

    5. (Optional) To enable logging, select Collect Logs.

    6. Click Next.

    7. Enter the following DSN details:

      Name:

      A unique name for your data source.
      Description:

      (Optional) A description for your data source.
      Address

      The host and port details. You can enter the IP address of any node or a load balancer endpoint in the cluster.

      • If you use a default port, provide only the host address. The default SSL port is 11207, and the default non-SSL port is 11210.

      • If you use a non-default port, use the format <host>:<port>. For example, 192.168.1.100:13000.

      • If you want to connect through the HTTPS management port, use the format <host>:<port>=http. For example, 192.168.1.100:18091=http.

      • The default SSL HTTPS management port is 18091, and the default non-SSL HTTPS management port is 8091.
      Database

      The name of the database from which the data must be extracted.
      Scope:

      (Optional) The scope from which the data must be extracted.

      Ensure that you do not include extraneous spaces or tabs when you enter the scope name.
      SSL Mode:

      Select Enable or Disable.
      Authentication:

      Select an authentication method.

      Based on the SSL mode and authentication method you select, the required fields differ.

      SSL Mode Authentication Fields Description

      Disable

      Basic

      Username, Password

      Enter user credentials.

      Enable

      Basic

      Username, Password, Cluster Cert Path

      Enter user credentials and the path to the root certificate you downloaded from Get Connection Details.

      Disable

      LDAP

      Username, Password

      Enter LDAP directory credentials.

      For more information, see Configure LDAP.

      Enable

      LDAP

      Username, Password, Cluster Cert Path

      Enter LDAP credentials and the path to the root certificate you downloaded from Get Connection Details.

      For more information, see Configure LDAP.

      Enable

      Client Certificate

      Client Cert Path, Client Key Path, Cluster Cert Path

      Enter paths to your client certificate, private key, and root certificate you downloaded from Get Connection Details.

      For more information, see Configure Client Certificates.

      Enable

      Client Certificate (Encrypted Key)

      Client Cert Path, Client Key Path, Key Password, Cluster Cert Path

      Enter paths to your certificates and encrypted key, including the key passphrase.

      For more information, see Configure Client Certificates.
      Providing the Username and Password in the DSN configuration is optional. However, in the Power BI tool, you must provide these credentials when prompted.

      When entering the certificate path, use double slashes (\\) for the path separators.

      E.g., C:\\Users\\user\\certificate.txt
      Advanced Parameters:

      Any additional parameters required for the connection. If no additional parameters are required, leave as the default.

      If you’re using an alternate (external) address, add the parameter network=external.

    8. Click OK to save the DSN and complete the setup.

    1. Open the ODBC Data Source Administration tool.

    2. Go to User DSN  Add.

    3. Select the Couchbase ODBC Driver (either ANSI or Unicode) from the list, and then click Finish.

    4. Select the data source as Capella Analytics.

    5. (Optional) To enable logging, select Collect Logs.

    6. Click Next.

    7. Enter the following DSN details:

      Name:

      A unique name for your data source.
      Description:

      (Optional) A description for your data source.
      Connection String:

      The exact connection string copied from Get Connection Details.
      Database

      The database from which the data must be extracted.
      Scope:

      (Optional) The scope from which the data must be extracted.
      For two-part scopes, use a . to separate the two parts. For example, travel-sample.inventory.

      Ensure that you do not include extraneous spaces or tabs when you enter the scope name.
      Username

      The cluster access name created in Get Connection Details.
      Password

      The password created in Get Connection Details.

      Providing the Username and Password here is optional. However, in the Power BI tool, you must provide these credentials when prompted.

    8. Click OK to save the DSN and complete the setup.

    1. Open the ODBC Data Source Administration tool.

    2. Go to User DSN  Add.

    3. Select the Couchbase ODBC Driver (either ANSI or Unicode) from the list, and then click Finish.

    4. Select the data source as Couchbase Server (Analytics Service).

    5. (Optional) To enable logging, select Collect Logs.

    6. Click Next.

    7. Enter the following DSN details:

      Name:

      A unique name for your data source.
      Description:

      (Optional) A description for your data source.
      Address

      The host and port details. Enter the IP address of the Data (KV) node in the Couchbase cluster.

      • If you use a default port, provide only the host address. The default SSL port is 11207, and the default non-SSL port is 11210.

      • If you use a non-default port, use the format <host>:<port>. For example, 192.168.1.100:13000.

      • If you want to connect through the HTTPS management port, use the format <host>:<port>=http. For example, 192.168.1.100:18091=http.

      • The default SSL HTTPS management port is 18091, and the default non-SSL HTTPS management port is 8091.
      Scope:

      The scope from which the data must be extracted.
      For two-part scopes, use a . to separate the two parts. For example, travel-sample.inventory.

      Ensure that you do not include extraneous spaces or tabs when you enter the scope name.
      SSL Mode:

      Select Enable or Disable.
      Authentication:

      Select an authentication method.

      Based on the SSL mode and authentication method you select, the required fields differ.

      SSL Mode Authentication Fields Description

      Disable

      Basic

      Username, Password

      Enter user credentials.

      Enable

      Basic

      Username, Password, Cluster Cert Path

      Enter user credentials and the path to the root certificate you downloaded from Get Connection Details.

      Disable

      LDAP

      Username, Password

      Enter LDAP directory credentials.

      For more information, see Configure LDAP.

      Enable

      LDAP

      Username, Password, Cluster Cert Path

      Enter LDAP credentials and the path to the root certificate you downloaded from Get Connection Details.

      For more information, see Configure LDAP.

      Enable

      Client Certificate

      Client Cert Path, Client Key Path, Cluster Cert Path

      Enter paths to your client certificate, private key, and root certificate you downloaded from Get Connection Details.

      For more information, see Configure Client Certificates.

      Enable

      Client Certificate (Encrypted Key)

      Client Cert Path, Client Key Path, Key Password, Cluster Cert Path

      Enter paths to your certificates and encrypted key, including the key passphrase.

      For more information, see Configure Client Certificates.
      Providing the Username and Password in the DSN configuration is optional. However, in the Power BI tool, you must provide these credentials when prompted.

      When entering the certificate path, use double slashes (\\) for the path separators.

      E.g., C:\\Users\\user\\certificate.txt
      Advanced Parameters:

      Any additional parameters required for the connection. If no additional parameters are required, leave as the default.

      If you’re using an alternate (external) address, add the parameter network=external.

    8. Click OK to save the DSN and complete the setup.

    1. Open the ODBC Data Source Administration tool.

    2. Go to User DSN  Add.

    3. Select the Couchbase ODBC Driver (either ANSI or Unicode) from the list, and then click Finish.

    4. Select the data source as Capella Operational (Analytics Service).

    5. (Optional) To enable logging, select Collect Logs.

    6. Click Next.

    7. Enter the following DSN details:

      Name:

      A unique name for your data source.
      Description:

      (Optional) A description for your data source.
      Connection String:

      The connection string copied from Get Connection Details.

      Remove the couchbase: prefix from the string when you enter it.

      For example, if the connection string is couchbases://cb.test.customsubdomain.couchbase.com, use cb.test.customsubdomain.couchbase.com.
      Scope:

      The scope from which the data must be extracted.
      For two-part scopes, use a . to separate the two parts. For example, travel-sample.inventory.

      Ensure that you do not include extraneous spaces or tabs when you enter the scope name.
      Username

      The cluster access name created in Get Connection Details.
      Password

      The password created in Get Connection Details.

      Providing the Username and Password here is optional. However, in the Power BI tool, you must provide these credentials when prompted.

    8. Click OK to save the DSN and complete the setup.

    Connect and Add Data to Power BI

    Business information tools rely on data organized into relational databases. To use the Power BI connector with Couchbase Analytics, you must create tabular analytics views (TAVs) on top of your collections.

    After you prepare tabular analytics views and define DSNs, use the Couchbase Power BI Connector to load data into Power BI.

    To prepare tabular analytics views, see:

    Add Data from Your Data Source

    To add data from Couchbase data sources to Power BI:

    1. In Power BI Desktop, select Get Data.

    2. Select Couchbase Connector.

    3. In the dsn field, enter the name of the DSN you created.

    4. Select Import or DirectQuery as the Data Connectivity mode and click OK.

    5. Select an authentication method based on your ODBC DSN configuration.

      • Basic - If your DSN uses Basic or LDAP authentication, or if you’re connecting to Capella Analytics or Capella Operational. Enter your username and password.

      • Basic (passphrase only) - If your DSN uses Client Certificate (Encrypted Key) authentication. Enter your private key passphrase and leave the username field empty.

      • Anonymous - If your DSN uses Client Certificate authentication. No certificate details required as this option provides implicit authentication.

      • Windows - If you want to authenticate with your Windows credentials.

    6. Click Connect.

    After connecting, Power BI displays a list of the tabular views in the database specified by your DSN. Select a view from the list and click Load to import it. You can then use various Power BI options to visualize the data.

    An example image of the travel-sample airport_view:

    A data visualization in Power BI

    Troubleshooting

    Performance Issues

    If you notice performance issues, make sure ODBC tracing is disabled. Enable tracing only when you need to collect logs, and turn it off afterward. For more information, see Setting Tracing Options.

    Error Code 126: ODBC Driver Could Not Be Loaded

    When creating the ODBC DSN or loading the ODBC driver, you might encounter the following error:

    ODBC driver error

    If this happens, try the following steps:

    1. Check OpenSSL installation

      • Run openssl version in the command prompt.

      • Make sure the version matches the driver requirements.

      • For the correct OpenSSL version, see Install OpenSSL.

    2. Verify driver installation

      • Open the ODBC Data Source Administrator (64-bit) tool.

      • Verify if the Couchbase ODBC driver is listed.

      • Reinstall if missing.

    3. Check for missing dependencies

      • Download the Dependencies tool from GitHub.

      • Open the tool and load couchbaseodbcw.dll and couchbaseodbc.dll.

      • Look for any entries marked as missing in the dependency tree.

    4. Make OpenSSL DLLs discoverable

      If all the previous steps are correct, you can try copying the OpenSSL DLL files directly into the Couchbase ODBC driver folder. Sometimes Power BI cannot locate the OpenSSL dependencies at runtime, even if they’re installed.

      • Go to C:\Software\OpenSSL-Win64\bin\.

      • Copy these files:

        • libssl-3-x64.dll

        • libcrypto-3-x64.dll

      • Paste them into the Couchbase ODBC driver folder C:\Software\couchbase-odbc\bin\.

      • Restart and retry

        • Close Power BI Desktop completely.

        • Clear the Power BI cache if possible.

        • Re-open Power BI and connect again.
