Manage Backup and Restore
Couchbase Server allows one or more buckets, and selected subsets of their data, to be backed up, restored, and archived.
The data on a Couchbase-Server cluster can be backed up, restored, and archived by means of either of the following:
The Backup Service. This can be configured by means of the Backup UI provided by Couchbase Web Console.
The cbbackupmgr CLI utility.
The technology that underlies the Backup Service includes that provided by
cbbackupmgr: note, however, that
cbbackupmgr and the Backup Service differ, in terms of the features they offer (as described below, in The Backup Service and cbbackupmgr).
Both the Backup Service and
cbbackupmgr are included in Couchbase Server Enterprise Edition.
Note that from version 7.0,
cbbackupmgr is also available in Community Edition, but without support for merge, cloud backup, or collection-level restore.
The following paragraphs summarize the similarities and differences between the Backup Service and
cbbackupmgr as provided by Enterprise Edition.
For use of the Backup Service, the Full Admin role must have been assigned.
For use of
cbbackupmgr, the Full Admin or the Data Backup & Restore role must have been assigned.
The Backup Service — which can be configured by means of the Backup facility of Couchbase Web Console, the Couchbase CLI, and the REST API — allows backup, restore, and archiving to be configured for the local cluster; and also permits restore to be configured for a remote cluster.
cbbackupmgr allows backup, restore, and archiving each to be configured either for the local or for a remote cluster: all available options are listed in Version Compatibility.
cbbackupmgr performs a specific backup or merge when executed, the Backup Service can be scheduled; so that backups and periodic merges are ongoing.
The Backup Service therefore supports additional and modified parameters, to allow scheduling to be configured.
Note that both the Backup Service and
cbbackupmgr allow full and incremental backups.
Unlike the Backup Service,
cbbackupmgr requires a new repository to be created for each new, full backup (successive
cbbackupmgr backups to the same repository being incremental).
Both allow incremental backups, once created, to be merged, and their data deduplicated.
Both use the same backup archive structure; allow the contents of backups to be listed; and allow specific documents to be searched for.
Both the Backup Service and
cbbackupmgr support use of AWS S3 storage.
cbbackupmgr is available in both Couchbase Server 7.0 Enterprise Edition (EE) and 7.0 Community Edition (CE).
However, whereas in EE,
cbbackupmgr allows backup and restore to be performed with reference to buckets, scopes, and collections; in CE,
cbbackupmgr allows backup and restore to be performed with reference to buckets only.
For detailed information on how
cbbackupmgr works (including a detailed description of incremental backup), see the Discussion provided on the page for cbbackupmgr.
The page for cbbackupmgr also provides a synopsis of the command, and a description of its basic options.
The remainder of the current page describes how to configure and use the Backup Service, using Couchbase Web Console.
For backup, restore, and other related tasks to be scheduled and performed, the Backup Service must be running on an assigned node.
The service (as is the case with all other Couchbase services) can be assigned either when a node is initially provisioned as a one-node cluster (as described in Create a Cluster), or when a node is added to an existing cluster (as described in Add a Node and Rebalance).
Provided that at least one node runs the Backup Service, data for the entire cluster can be backed up, restored, and archived.
Locations to be used for saving data must be accessible to all cluster-nodes that are running the Backup Service.
Note also that Couchbase Server must have read and write access to the location.
On Linux, therefore, for a filesystem location, use the
chgrp command to set the group ID of the folder to
couchbase; unless a non-root installation has been performed, in which case set the group ID either to the username of the current user, or to a group of which the current user is a member — see Non-Root Install and Upgrade, for more information.
To access the Backup Service UI, proceed as follows:
On Couchbase Web Console, left-click on the Backup tab, in the right-hand, vertical navigation bar:
This brings up the Backup screen. The initial appearance is as follows:
The Backup screen features two tabs, located on the upper, horizontal navigation bar: these are Repositories and Plans. By default, the Repositories tab is selected: the corresponding, Repositories view features three panels, for Active, Imported, and Archived repositories respectively. Currently, all panels are blank.
The Backup Service allows backups (and merges) to be scheduled, as tasks. This section describes how task-definition and scheduling can be accomplished. Note that for any given repository, the Backup Service performs one task at a time; with each task maintaining a lock on the repository. Therefore, the administrator-defined interval between tasks should always be sufficient to allow each task to run to completion. If a new task is scheduled to start while a previously started task is still running, the new task cannot run. For information, see Avoiding Task Overlap.
To schedule one or more backups, proceed as follows:
Choose to add a repository. When fully defined, the repository will combine the definitions of one or more backup and related activities, scheduled for one or more buckets, targeted at a storage location accessible to all nodes on the cluster. Each repository must have a name unique among repositories on the cluster.
To add a repository, left-click on the ADD REPOSITORY tab, at the upper right of the screen:

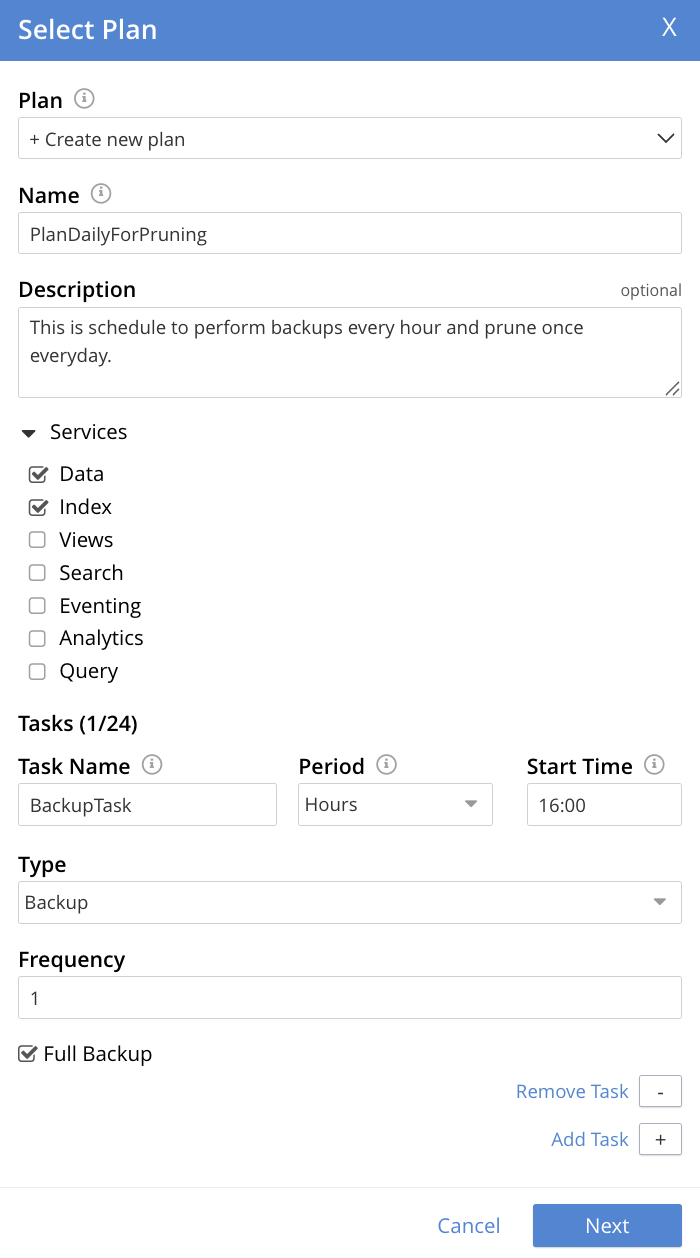

This brings up the Select Plan dialog, which initially appears as follows:
Specify whether to use a default or a custom plan. A plan determines what kind of backup is to occur, affecting what data, and on what schedule. Predefined plans are provided, named _hourly_backups and _daily_backups: as their names indicate, these provide backups that are respectively hourly and daily. The _hourly_backups plan appears as the default selection.
(For more information, see Default Plans, below.)
Left-click on the control that appears at the right-hand side of the Select plan dialog’s interactive text-field. A pull-down menu appears, as follows:
Three options are thus provided. The first two are _daily_backups and _hourly_backups. The third option is + Create new plan: select this option:
This establishes the string + Create new plan within the interactive text field; and modifies the Select Plan dialog to appear as follows:
Create a custom plan. In the Name field of the Select Plan dialog, enter a name for the plan that is to be created. The name must be unique across the cluster, can only use the characters
-; and must not start with either
Then, optionally, add a description for the plan in the Description field: the description can be up to 140 characters in length. For example, to specify a plan for hourly backups, the following might be entered:
Next, specify the services for which data will be backed up. Left-click on the Services control: this expands the dialog, and displays a complete list of Couchbase Services, each being accompanied by a checkbox.
To specify that only data for the Data and Index Services should be backed up, uncheck the boxes for all the other services.
Next, to specify precise details of what should occur when the backup is run, left-click on the Add Task control. The dialog now expands, to reveal the following fields:
The fields permit the input of data to specify the details of a particular task. Note that the dialog permits multiple tasks to be specified, by additional left-clickings of the Add Task control; and allows tasks selectively to be removed, by left-clickings of the Remove Task control.
In the Name field, enter an appropriate name for the task: for example, hourlyBackup.
The Period field allows specification of the frequency of the task. If the default selection, Weekly Calendar, is chosen, this specifies a daily backup according to details added lower in the panel for the task. Alternatively, to choose a specific frequency, access the control at the right-hand of the Period field. A pull-down menu appears:
From the pull-down menu, select Hours, to indicate that the frequency should be determined in units of hours. (Note that this duly removes from the dialog the day-specification controls associated with Weekly Calendar.)
In the Start Time field, specify a time of day at which the task is to be run. The time of day must be specified as hours and minutes, separated by a colon. Note that when the frequency-unit specified is Minutes, this field takes no input. When the frequency-unit specified is Hours (as is the case in the current example), only the numbers signifying minutes (those after the colon) are used. To ensure that the hourly task is performed on the hour, leave these numbers as 00.
In the Type field, specify the task to be performed, by accessing the control at the right-hand side of the field. This displays the following pull-down menu:
Select Backup, from the pull-down menu. Then, in the Frequency field, specify the frequency with which the task should be performed. The field only accepts integers: these must be between 1 and 200 inclusive. To specify that the task be performed hourly, enter 1.
(Note that an overview of all options for task-scheduling is provided below, in the section Review Scheduling Options.)
To complete specification of the task, determine whether the backup to be performed is Full or Incremental. If it is to be Full, check the Full Backup checkbox. If it is to be Incremental (as should be the case in the current example), leave the checkbox unchecked.
The dialog now appears as follows:
At this stage, if another task is to be specified, the Add Task control should be clicked on: this expands the dialog further, and provides another set of task-specification fields. If the task already added is to be removed, left-click on the Cancel button: this discards the data that has been added for the task, and closes the task-panel. If the specification of the plan is to be abandoned, left-click on the Cancel tab, at the lower right. If the specification for the task is to be retained and used, and no other task is to be specified (as is the case in the current example), left-click on the Next button:

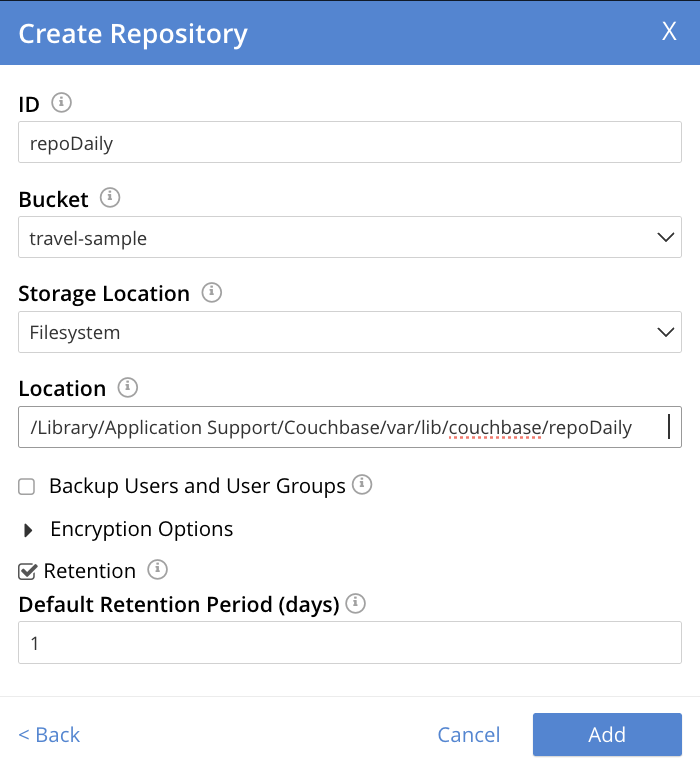

This brings up the Create Repository dialog, which appears as follows:
Create a repository. Enter data into the Create Repository dialog.
The ID should be a name for the repository. The name must be unique across the cluster, can only use the characters
-; and must not start with either
]. For example,
The Bucket should be the name of either a Couchbase or an Ephemeral bucket, whose data is to be backed up. Selection can be made with a pull-down menu, accessed by means of the control at the right of the field. If a bucket-name is selected, only data from this bucket is backed up. If the default selection, All buckets, is used, data from all buckets on the cluster (including all Couchbase and all Ephemeral buckets) is backed up.
Use the control at the right-hand side of the field, to select a bucket. For the current example, the sample bucket
travel-sampleis assumed to have been installed (see Sample Buckets); and will be specified in this field.
The value for Storage Locations can be specified as Filesystem (the default) or Cloud. For the current example, Filesystem will be used. Note that if Cloud is selected, allowing AWS S3 storage to be used, the dialog expands, and displays additional options: these are described below, in Use Cloud Storage.
The Location should be the location of the storage-based archive for the repository. If on the local filesystem, this location must be a pathname accessible to all nodes within the cluster that are running the Backup Service: which is to say, reads from and writes to the location are shared through an NFS mount (or through some other type of shared-folder technology, such as Samba). Couchbase Server must have read and write access to the location. On Linux, therefore, for a filesystem location, use the
chgrpcommand to set the group ID of the folder to
couchbase; unless a non-root installation has been performed, in which case set the group ID either to the username of the current user, or to a group of which the current user is a member.
When complete, the dialog may look as follows:
To confirm, left-click on the Add button:
This concludes the process for creating repository and plan. The Backup screen now appears as follows:
The newly created repository, hourlyBackupRepo, is thus displayed with its associated plan,
HourlyBackupPlan, with the affected bucket (
travel-sample) and the next scheduled backup displayed.
Data Service and Index Service data for
travel-sample will now be backed up to the specified location on the specified schedule.
A repository whose plan is being executed (with data thereby backed up repeatedly, on schedule) is referred to as an active repository.
By means of the Backup Service, an immediate backup can be run: this eliminates the need to wait for a scheduled backup to run at an appointed time. To run an immediate backup, access the Backup screen, and left-click on the row for an already-defined, active repository. For example:
This causes the row to expand vertically, as follows:
A number of buttons now appear, arranged horizontally across the bottom of the row, permitting a variety of actions. To perform an immediate backup, left-click on the Run Backup button:
This displays the Trigger Backup dialog, which appears as follows:
The immediate backup to be performed will be incremental by default. To perform a full backup, check the Perform a full backup checkbox.
Left-click on the Backup button, at the lower right of the dialog. The dialog disappears, and a notification is displayed at the lower left of the console:
This duly indicates that an immediate backup has been triggered.
Using Couchbase Web Console, the history of backups to a specified repository can be reviewed. Left-click on the row of a repository, to expand it vertically. Then, left-click on the Inspect Backups button:
This displays the Backup facility’s Repository screen, which appears as follows:
The screen provides two possible views, which are Tasks and Backups: these can be selected by means of the buttons at the upper right:
The Backups view is selected by default. (Note the left-clicking the Tasks button displays the Tasks view: this is the same display as that accessed by means of the Tasks button, from the expanded row on the Repositories view of the Backup screen; and is described in Inspect Tasks, below.)
The main, lower panel of the Backups view provides the ID of the repository (in this case,
83f3b752-78e6-49f8-a527-2844c30fbc75) and its size (here,
235.551MiB); and also provides a vertically arranged list of all backups that have occurred, with the earliest at the top.
Each backup has its own row; with its start-time, type (full or incremental), and size.
To inspect a particular backup in detail, left-click on the control at the left-hand side of the row:
This causes the row to expand vertically:
The displayed data includes the UUID for the source cluster. Also specified are the numbers of Eventing Functions written for the Eventing Service, and the number of Full Text Search Aliases for the Search Service (here, the numbers are both zero).
Each bucket that has been backed up (in this case, the
travel-sample bucket alone), appears on its assigned row in a table that specifies its size; along with the number of items, mutations, and tombstones that have been included in the backup.
The row also lists the numbers of backed up indexes for the Index, Search, and Analytics Services; and the number of backed up Views.
Additionally, in a searchable sub-panel, each scope that the bucket contains is individually listed (these here being the default and inventory scopes, and four tenant_agent scopes); with the number of mutations and tombstones listed, per scope.
To inspect the individual collections within a displayed scope, left-click on the row for the scope. The row expands vertically, as follows:
Thus, left-clicking on the row for the
inventory scope has displayed the individual collections within the scope; and thereby shows the mutations and tombstones for each collection.
Collections can be searched for, based on strings entered into the filter collections field, which is located to the upper right of the collections panel.
The upper panel of the Data screen provides interactive fields labelled Key and Search Path. These can be used to search for a specific document within the repository. Optionally, the subset of backups within the repository can be specified, by means of the Start and End fields. For example, by accessing the control at the left-hand side of the Start field, a pull-down menu is displayed: this lists backups any one of which can be used as the starting point for the search:
For example, type a known document key into the Key field — such as
Then, enter the bucket name into the Search Path field: note that this requires explicit specification of both scope and collection; unless default scope and collection have been used, in which case, explicit specification of the defaults is optional — for example,
When a search is expressed to include all backups of the bucket for the
inventory scope and
airline collection, the panels appear as follows:
To run the search, left-click on the Examine button. The Examine screen is now displayed:
Note that the controls adjacent to the Diff button, near the top of the screen, allow different backups to be selected, so that the differences between the document-versions they contain can be individually examined:
The specified document is thereby shown, in the left and right-hand panels of the main display, in versions that respectively correspond to the backups selected. When a field has changed, the earlier version appears shaded red, the later shaded green.
By default, a Side-by-Side Diff view of the specified document is shown. To display an Inline Diff view, access the control at the upper right of the screen:
The Inline Diff view is now provided:

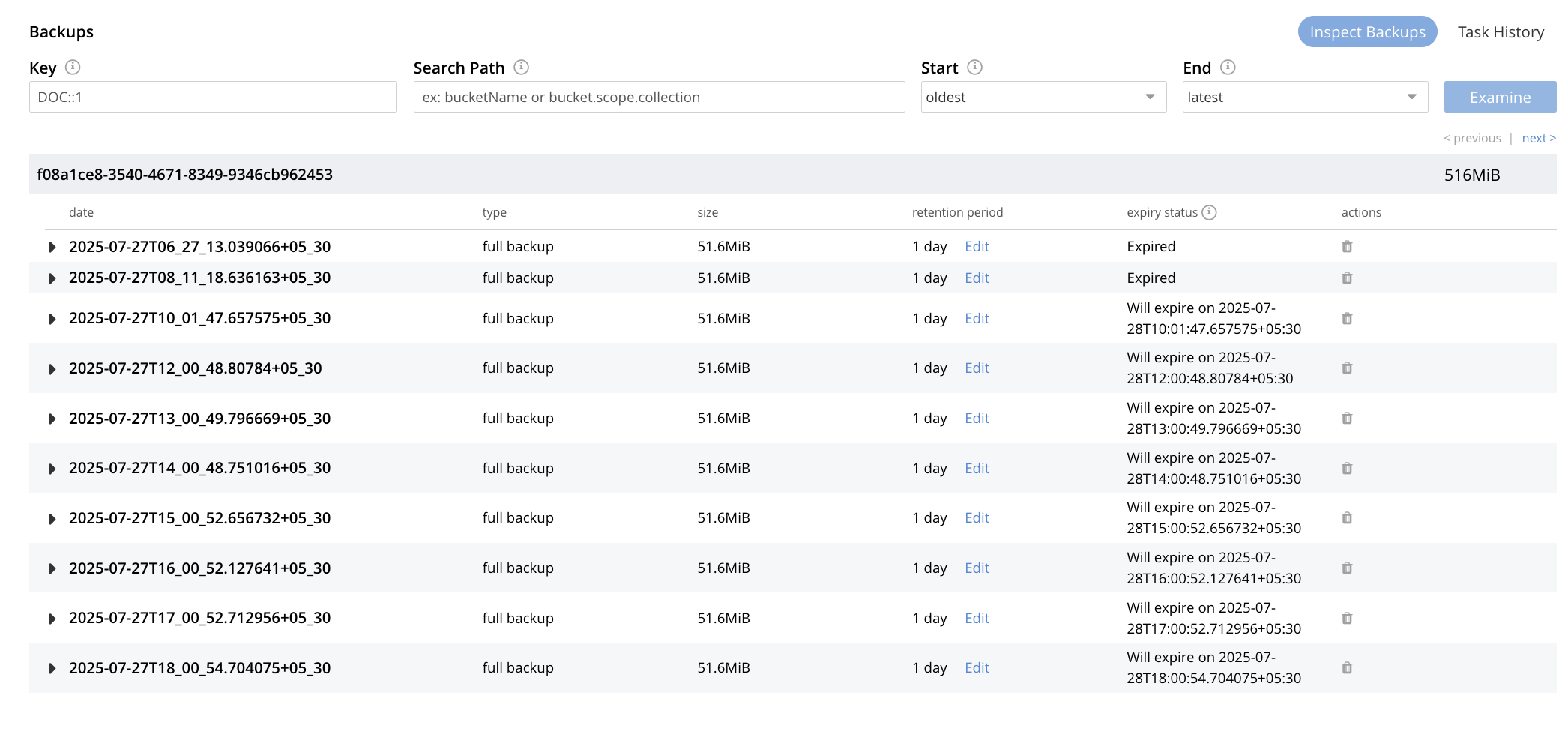

By means of the Backup facility’s Data screen, individual backups can be deleted. At the extreme right of the row for each listed backup, a garbage-can icon appears:

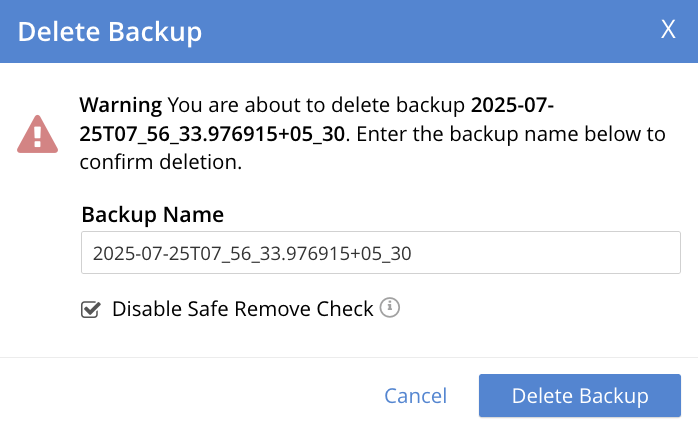

Left-click on this icon to delete the backup described on the row. The Delete Backup dialog appears, requesting confirmation:
Enter the backup name into the interactive text field, and left-click on Delete, to continue with deletion. The backup is deleted. Note that once it has been deleted, it cannot be restored.
To inspect currently defined tasks, do either of the following:
Left-click on the Tasks button that appears on the expanded row for a repository, on the Repositories view of the Backup screen.
Left-click on the Tasks button that appears at the upper-right of the Backup screen, which has been accessed by means of the Inspect Backups button that appears on the expanded row for a repository, on the Backup screen.

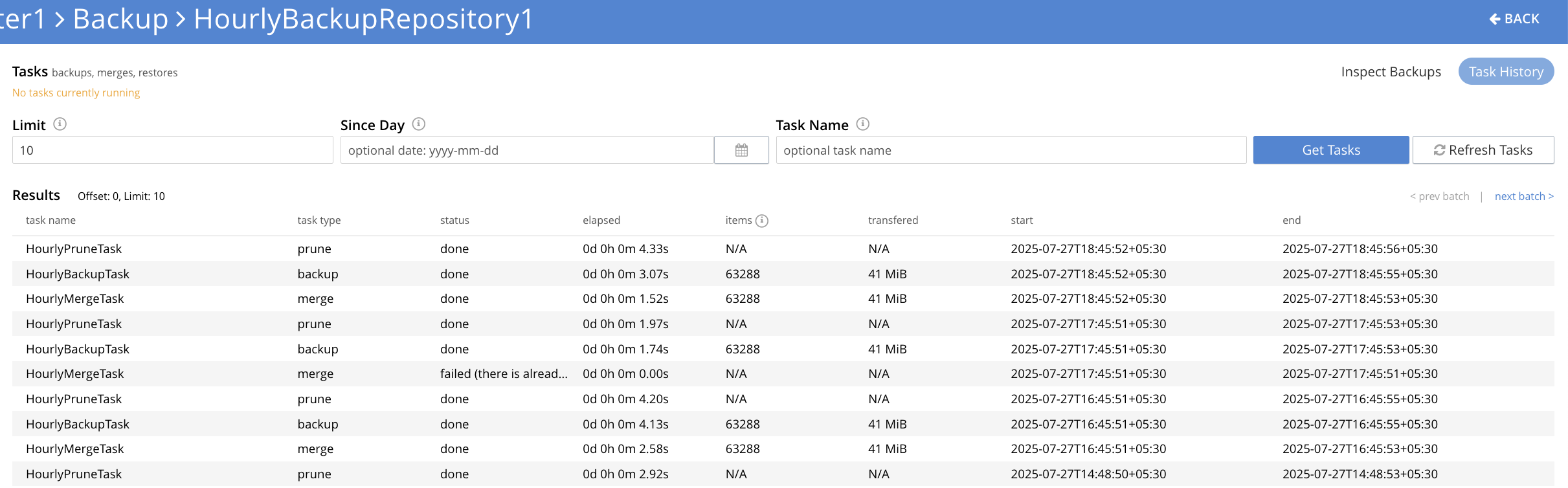

The Tasks screen appears as follows:
The screen provides two possible views, which are Tasks and Backups: these can be selected by means of the buttons at the upper right. The Tasks button is currently selected. (Left-clicking on the Backups button displays the Repository screen, described above in Inspect Backups).
The Running field provides information on any tasks currently running. The History button permits a refresh of data shown in the lower panel; which lists the current history of tasks performed. The Get Tasks button allows specific tasks to be identified by search, and displayed. The earliest date for the task can be specified in the Since Day field; and the name of the task in the Task Name field, so as to narrow the search. A limit on the number of tasks displayed can be specified as an integer, between 1 and 100 inclusive, in the Limit field.
The main task list, in the lower panel has an Offset figure displayed at its head: this indicates the position in the list of the first displayed task; and changes when the prev batch and next batch controls, at the right-hand side, are left-clicked on. The task list is presented as a table, which shows, for each task that has been executed, the Task name, Task type (such as Backup or Merge), status (such as done or running), the Elapsed time for the task, the number of Items and size of data that was Transferred by the task, and the Start and End times for the task.
To inspect a particular task in detail, left-click on the row for the task. For example:
The selected row is expanded vertically, as follows:
The details of the task are thus displayed as a JSON document.
The details include counts of items, vBuckets, and bytes received from the operation.
node_runs subdocument provides information specific to each node in the cluster.
A merge allows multiple backups to be combined as one; with deduplication occurring.
Merges are supported for filesystem-based repositories: however, merges are not supported for cloud-based repositories. If a merge is scheduled for a cloud-based repository, the Backup Service skips the task. An immediate merge cannot be triggered for a cloud-based repository.
Merges can be scheduled as tasks, to be applied to backed up data within a defined repository. This section describes how task-definition and scheduling for merges can be accomplished. Note that for any given repository, the Backup Service performs one task at a time; with each task maintaining a lock on the repository. Therefore, the administrator-defined interval between tasks should always be sufficient to allow each task to run to completion. If a new task is scheduled to start while a previously started task is still running, the new task cannot run. For information, see Avoiding Task Overlap.
Proceed as follows, noting that the initial steps (for adding a repository, creating a new plan, and adding a backup task to the plan) are the same as those described in Schedule Backups, above.
Access the Backup screen, and left-click on ADD REPOSITORY. When the Select Plan dialog is displayed, choose + Create new plan.
In the redisplayed Select Plan dialog, specify a Name and a Description for the plan. Then, specify the Services whose data should be backed up.
Note that a merge can only be scheduled as part of a plan that also schedules backup: the merge will be applied to backups within the defined repository.
Left-click on Add Task, and add a Backup task. For example:
This task calls for a backup to occur every hour. Next, left-click on the Add Task control. When the fields for defining an additional task appear, specify the task to be of type Merge, with a frequency of four hours; and to start on the half-hour (to allow time for each backup task, itself run on the hour, to complete). For example:
The Type of the task MergeTask has thus been specified as Merge, with a frequency of four hours. Note the fields Merge Offset Start and Merge Offset End, which respectively specify the relative start and end points of each merge that will be performed. An offset start of 0 indicates that each merge will start with backups made on the current day, if such backups exist. An offset end of 2 indicates that each merge will end with backups that were made 2 days before the specified start-day, if such backups exist. If backups were not made every day during the specified period, as many as can be found will be merged.
Note that a detailed, diagrammatic explanation of Merge Offset Start and Merge Offset End is provided in Specifying Merge Offsets.
Left-click on the Next button:
When the Create Repository dialog appears, enter the ID of the repository you are creating, the name of the Bucket that is being backed up, the appropriate value of Storage Locations (here, Filesystem), and the on-disk location of the repository-archive. (Note that this on-disk location must be accessible to all Backup Service nodes in the cluster.) For example:
Left-click on the Add button. The new repository now appears in the Repositories view of the Backup screen:
The defined backups and merges will now occur, on the specified schedule. This can eventally be seen by left-clicking on the row for the new repository, and then left-clicking on Inspect Backups.
By accessing a vertically expanded repository-display in the Repositories view of the Backup screen, an immediate merge can be manually triggered. The repository does not need to have scheduled merges in its plan; but must already contain multiple backups, so that some or all of these can be merged.
Note that merges are supported for filesystem-based repositories only: they are not supported for cloud-based repositories.
Proceed as follows:
In the Repositories view of the Backup screen, select a repository that contains multiple backups, by left-clicking on the row for the repository. When the row has expanded vertically, left-click on the Merge button:
The Merge Backups dialog is now displayed:
The dialog allows determination of which backups should be merged, based on specification of the first and the last: these backups, and all backups that occurred between them, will be merged.
To specify the first backup, access the interactive control at the right-hand side of the Start field. This produces a pull-down menu that displays all available backups for this repository:
Select a backup that will be the starting backup for the merge. Then, access the control at the right-hand side of the End field, and select, from its pull-down menu, a backup that will be the ending backup for the merge. The dialog now appears as follows:
Left-click on the Merge Backups button, at the lower right of the dialog. The dialog now disappears, and the following notification appears, at the lower left of the console:
The specified merge has now been triggered.
To check the results, in the Repositories view of the Backup screen, left-click on the Inspect Backups button, on the expanded row for the selected repository. This displays the history of backups and merges for the repository. (It may be necessary to scroll through multiple screens of information, to find the merge that has been created.)
Here, the merge of incremental builds just performed is clearly indicated; as
merge - full backup. To obtain further specifics, left-click on the row for the merge. The row expands vertically, as follows:
The details in the expanded row confirm that five backups were merged by the operation just performed.
One or more backups can be restored to the cluster; which means that the data in the backups is copied back into the buckets from which it was originally backed up, or into other buckets. Proceed as follows:
In the Repositories view of the Backup screen, select the repository from which data is to be restored, and left-click on the row for the repository, in order to expand it vertically. Then, left-click on the Restore button:
The Restore dialog is now displayed:
Use the Restore dialog to specify which backup or backups should be restored. In the Cluster field, enter the IP address of the cluster at which the data-restoration is targeted. Enter username and password for the target cluster in the User and Password fields, and then use the controls at the right-hand sides of the Start and End fields to select the first and last backups in the series that is to be restored. The dialog now appears as follows:
Open the Services tab, on the Restore dialog, and specify the services whose data is to be restored — unchecking the checkbox for each service whose data is not required. For example:
Open the Advanced Restore Options tab, on the Restore dialog. The dialog expands vertically, revealing the following fields:
These fields allow selection of documents to be restored on the basis of the data they contain. Documents that meet the specified criteria are included in the data-restoration; those that do not are omitted from it.
Use of these fields is optional: if all data in the specified backups is to be restored, leave these fields blank. If only some data should be restored, proceed as follows:
In the Filter Keys field, add a regular expression that must be matched by a document’s key, if the document is to be included in the restoration. For example,
^airlineensures that only a document whose key begins with the string
In the Filter Values field, add a regular expression that must be matched by a value within the document, if the document is to be included in the restoration. For example,
MIL*ensures that only a document that contains at least one key-value pair whose value contains the string
MILfollowed by zero of more characters is to be included in the restoration. (See Regular Expressions and Regular-Expressions.info, for further information.)
In the Map Data field, indicate whether the data is to be restored to its original or to a different bucket. If this field is left blank, data is restored to its original bucket: note that this bucket must continue to exist on the cluster. If data is to be restored to a different bucket, that bucket must either already have been defined on the cluster, or must be created by means of the Auto-create bucket option, described below.
For example, if data to be restored from
travel-sampleshould be restored to
Use the Include Data and Exclude Data fields to indicate the subset of buckets whose data is to be restored. For example, if backups to be restored were made when the cluster had four buckets defined, named
bucket1,bucket4in the Include Data field ensures that only data from
bucket4is restored; while entering
bucket2,bucket3in the Exclude Data field ensures that data from
bucket3is not restored. Note that these options are intended for use on backups that included all buckets on the cluster: they are not required when the backup was made of one bucket only.
Note that the Include Data and Exclude Data fields also allow the scopes and collections within buckets to be specified. To specify a scope within a bucket, use the syntax bucket-name.scope-name. To specify a collection within a scope within a bucket, use the syntax bucket-name.scope-name.collection-name. For example, entering
bucket1.scope1in the Include Data field would ensure that only data from the scope
bucket1is restored; while entering
bucket2.scope1.collection1in the Exclude Data field would ensure that data from
bucket2, is not be restored. (For an overview of scopes and collections, see Scopes and Collections.)
Check the Force Updates field to ensure that data restored from the specified backup overwrites the current values on the cluster when the current values are the more recent. If the Force Updates checkbox is not checked, current values are not overwritten if more recent.
Check the Auto-remove Collections checkbox to omit from the restoration any scope or collection that has been removed from the cluster since the backup was performed. (Note that if a data-containing, administrator-created collection is backed up, but is then deleted from the cluster with all its data, the deleted data will not be restored by the Restore operation: however, the empty collection will be restored by the Restore operation, unless the Auto-remove Collections checkbox is checked, prior to the Restore operation.)
Check the Auto-create Buckets checkbox to create any buckets to which the restoration has been mapped that do not yet exist on the target cluster.
For example, the Restore dialog may now appear as follows:
Values are thus specified for filtering documents on a basis of both key and value. The data to be restored from
travel-sampleis specified to be restored to a bucket named
ts, which has not previously been created: therefore, the Auto-create Buckets checkbox has been checked.
Left-click on Restore. This triggers the specified restoration. The dialog disappears; and a green restore-notification appears, at the lower left of the console.
Subsequent to the operation, its results can be checked; by means of the Buckets screen of Couchbase Web Console, which might now appear as follows:
A new bucket, named
ts, has thus been created.
Its item-count indicates that it contains only a subset of the documents contained in
travel-sample, in accordance with the filtering specified for the restore operation.
The Backup Service allows scheduled backups to be paused, indefinitely. This may be useful when a cluster is undergoing maintenance, or when buckets are otherwise not available. Once a pause is executed by the administrator, no scheduled task for the repository is executed. Then, when a resume is subsequently executed by the administrator, the task-schedule is resumed at the earliest, planned opportunity: thus, if backups are hourly, and a pause is executed at 9:50 am, if a resume occurs at 9:58 am, the next backup occurs at 10:00 am; but if the resume occurs at 10:02 am, then the next backup occurs at 11:00 am.
To pause a backup, access the Repositories view of the Backup screen, and left-click on the row for the repository to be paused. This expands the row vertically, and displays the Pause button. Left-click on this, to pause backups:
The button now changes into a Resume button. Left-click on this whenever backups are to be resumed:
When a repository should no longer receive fresh backups, the repository can be archived. This means that it remains available, with all its data; but no longer receives modifications. To archive a repository, proceed as follows;
Access the repository that is to be archived in the Repositories view of the Backup screen, and expand the row for the repository by left-clicking on the repository’s row. When the row has expanded, left-click on the Archive button:
This brings up the Archive Repository dialog, which appears as follows:
The dialog contains a notification, warning that no further backups or merges will be possible to the repository, once it has been archived.
Confirm the repository to be archived. Enter its name into the Confirm repository ID to archive field. Then, enter the intended name of the archived version of the repository into the New ID field. The dialog now appears as follows:
Left-click on Archive, to confirm. The dialog now disappears.
Check the archived repository, in the Repositories view of the Backup screen, in the Archived panel. This now appears as follows:
Left-click on the row for the archived repository, to expand the row, and reveal details and options:
Repositories can be deleted. However, no repository can be deleted until it has been archived, as described above, in Archive Repositories.
Therefore, to delete a repository, and the backups it contains, proceed as follows:
Archive the repository, as described in Archive Repositories.
Access the archived repository, in the Archived Repositories panel that appears in the Repositories view of the Backup screen, and open the row for the repository, by left-clicking on it.
Left-click on the Delete button. The Delete Repositories dialog now appears:
The dialog provides two options for deletion. If the Delete backup data files checkbox is checked, the deletion is irreversible: the archived information no longer exists on disk. If the checkbox is unchecked (which is the default), the deleted archive’s contents continue to exist on disk, even though no longer explicitly tracked by the Backup Service, and so can be recovered subsequently; as described below, in Import Repositories.
To delete the archive while allowing the contents to continue to exist on disk, enter the name of the archive in the Confirm Repository ID field, leave the Delete backup data files checkbox unchecked, and left-click on Delete. Subsequently, the archived repository is no longer maintained by the Backup Service, and no longer appears in the Archived Repositories panel.
A repository not currently managed by the Backup Service can be imported into the service, by means of the Backup UI. For example, a repository that was archived and subsequently deleted can be imported back into the service, provided that its on-disk files were not explicitly deleted (see Delete Repositories, above, for information on deleting repositories while preserving on-disk files).
To import a repository, proceed as follows:
Left-click on the IMPORT tab, at the upper right of the Repositories view of the Backup screen:
This brings up the Import Repository dialog, which appears as follows:
Enter appropriate details into the Import Repository dialog.
In the ID field, enter a name for the repository, which will be used once the repository has been imported. The name must be unique across the cluster, can only use the characters
-; and must not start with either
The Storage Location can be specified as Filesystem (the default) or Cloud. For the current example, Filesystem will be used. Note that if Cloud is selected, allowing AWS S3 storage to be used, the dialog expands, and displays additional options: these are described below, in Use Cloud Storage.
In the Cbbackupmgr Repository Path, enter the path of the repository to be imported. If necessary, locate on disk the folder within which the repository resides:
Locate the repository within its parent folder, and make a copy of the repository name:
Then, specify the repository name as part of the full file path. The Import Repository dialog now appears as follows:
Left-click on the Import button, at the lower right of the dialog. The dialog disappears, and the repository is imported.
Check the results of the import operation. Access the Repositories view of the Backup screen, and observe the Imported Repositories panel:
For further details, left-click on the row to make it expand vertically:
All plans created for the Backup Service can be reviewed, by left-clicking on the Plans tab, on the upper, horizontal navigation bar of the Backup screen:
This displays the Backup screen’s Plans view:
The plan displays, in the name column, the name of every current plan; under the instances column, an integer that represents the number of repositories maintained by means of the plan identified on the current row; and under services, the Couchbase Services whose data is handled by the plan.
To inspect a plan in detail, left-click on its row, to make the row expand vertically. For example:
The displayed details indicate that HourlyBackupPlan contains two tasks: the HourlyBackupTask performs a task of type BACKUP every hour; while the FourthHourMergeTask performs a task of type MERGE every 4 hours, merging all backups from the current day to two days ago..
At the right-hand side of each row, a garbage-can icon is displayed. To delete a plan, left-click on the icon on the row of the plan to be deleted: the plan is deleted immediately, and no longer appears on the Plans screen. (Note that a plan cannot be deleted until all repositories using it are archived or themselves deleted.)
The Backup Service provides two plans by default, which are _daily_backups and _hourly_backups:
The _daily_backups plan backs up data for all services, every day. A full backup is performed on Monday, and an incremental on each other day. The previous weeks' backups are merged every Sunday, and the previous 28 days' backups are merged every 28 days.
The _hourly_backups plan backs up data for all services, ever hour. Every backup is incremental. Each day at midnight, all the previous days' backups are merged. The previous week’s backups are merged every Sunday, and the previous 28 days' backups are merged every 28 days.
Backup-Service scheduling options are provided per task, on the Select Plan dialog; which is provided as part of the sequence for repository-definition, after the administrator has left-clicked on the ADD REPOSITORY tab, at the upper right of the Repositories view of the Backup screen. See Schedule Backups, for details.
The task-definition panel provided for each task appears by default as follows:
The default, Weekly Calendar option refers to use of the two, interactive, days-of-the-week selectors that appear under Full Backups and Normal Backups (a normal backup being an incremental backup). The day-by-day frequency of each kind of backup can thus be determined by left-clicking on the appropriate days. For example, the following selection would indicate that a full backup should occur on Saturday, every week; and an incremental build should occur every week on each of the following days: Monday, Wednesday, and Friday.
A Weekly Calendar schedule means that one backup happens daily. The time of the daily backup can be specified by means of the Time panel. No merge can be scheduled, nor can backups be scheduled more frequently.
Alternatively scheduled merges and backups can be configured by accessing the control at the left-hand side of the Period field:
The pull-down menu thus displayed contains three kinds of scheduling option. One is the default, Weekly Calendar. Another is by means of time-units: which are Minutes, Hours, Days, and Weeks. If a unit is specified, an appropriate integer must be entered into the Frequency field, to indicate the number of time-units that must elapse between repetitions of the task. If Minutes are specified, only the minutes portion of the time entered into the Time field is used — as the starting point, every hour, for the task sequence; with the task being repeated throughout the hour as many times as specified in the Frequency field. If Hours are specified, the task is first performed at the time specified in the Time field, and then repeated as specified in the Frequency field. If Days or Weeks are specified, the task is performed as scheduled, at the time specified in the Time field. (A full example of using Minutes as time-units is provided above, in Schedule Backups.)
A third option is by means of days: such as Monday, Tuesday, and so on. If a day is selected, an appropriate integer must be entered into the Frequency field, to indicate the number of instances of the day’s occurrence that should elapse before the task is performed. For instance, if Monday and 3 are specified, the task is performed on the first Monday, then two Mondays elapse, and then the task is performed again on the fourth Monday; and so on. The time at which the task is commenced is that specified in the Time field.
Cloud storage can be used for backups. However, cloud storage cannot be used for merges. If a merge is scheduled for cloud storage, the Backup Service skips the task. An immediate merge cannot be triggered for cloud storage.
During the input-sequence for repository-creation, storage for the repository can be specified. See Schedule Backups, for an example of using the local filesystem. Alternatively, cloud storage can be selected, from the Storage Locations field of the Select Plan dialog. When the selection is made, the dialog expands vertically, as follows:
The fields are as follows:
Staging Directory. A directory on the local file system that is large enough to accommodate approximately 10% of the data set that is to be backed up. A minimum of 50 GB is recommended. The pathname of the location must be accessible to all nodes in the cluster that are running the Backup Service; but the location itself must be not be shared by NFS or any equivalent protocol. Instead, the location must be a non-shared directory on the local file system for the node.
Provider. To use either S3 or S3-compatible storage, select AWS.
Cloud Bucket. The bucket in the cloud to which data will be backed up.
Path Prefix. The path of the archive, within the cloud bucket. This should take the form
Cloud Auth Type The type of authentication to be used when communicating with the cloud provider. The options are ID and key (which means that an ID and key will indeed be required for communication to be successful) and Instance metadata service (which means that credentials will be sought from the metadata service running in the node’s virtual machine). Each option assumes that appropriate configuration procedures for the cloud environment have been followed.
Credential ID. The credential ID for the store. For AWS, this is the access key id. If Instance metadata service has been specified as the value for Cloud Auth Type, this field is inapplicable, and is no longer displayed.
Credential Key. The secret key for the store. For AWS, this is the AWS secret access key. If Instance metadata service has been specified as the value for Cloud Auth Type, this field is inapplicable, and is no longer displayed.
Region. The AWS Region for the repository. For example,
Under Advanced cloud options, the Endpoint field accepts an optional endpoint, used to connect to AWS; and overriding the endpoint used by the cloud-provider.
If checked, the S3 Force path style checkbox ensures that the AWS path style used is the earlier (rather than the more recent, which is not supported by all S3 compatible object stores).
The Backup Service can be configured and used by means of the REST API. For reference pages on each supported endpoint, see Backup Service API.
