Alerts

      +
      Email alerts can be dispatched automatically.

      Configuring Alerts

      Alerts can be dispatched automatically by Couchbase Server, to highlight specific issues and problems. When an issue arises one or both of the following can occur based on user configuration:

      • The alert is sent as an email by Couchbase Server to a configured SMTP server. From there, the email is forwarded to a configured list of email recipients. All cluster-nodes must have network access to the configured SMTP server, for the system to be fully effective.

      • The alert appears as a pop-up, within the Couchbase Server Web Console of its recipient.

      Only Full Administrators and Cluster Administrators can configure email alerts. Configuration can be performed with Couchbase Web Console, the Couchbase CLI, or the REST API.

      Configure Email Alerts with the UI

      Access the Email Alerts settings screen. First, left-click on the Settings tab, in the navigation bar at the left-hand side of Couchbase Web Console:

      settingsTab

      This brings up the main Settings screen. Now, access the Alerts panel, by means of the Alerts tab, located on the horizontal navigation bar, at the top:

      emailAlertsTab

      The Email Alerts panel now appears, as follows:

      emailAlertsScreenInitial

      Initially, its content is greyed out, and the user-interface components are inaccessible. To make the components accessible, use the Enable email alerts toggle, near the top of the panel:

      enableEmailAlertsToggleOff

      Switch the toggle to the right:

      enableEmailAlertsToggleOn

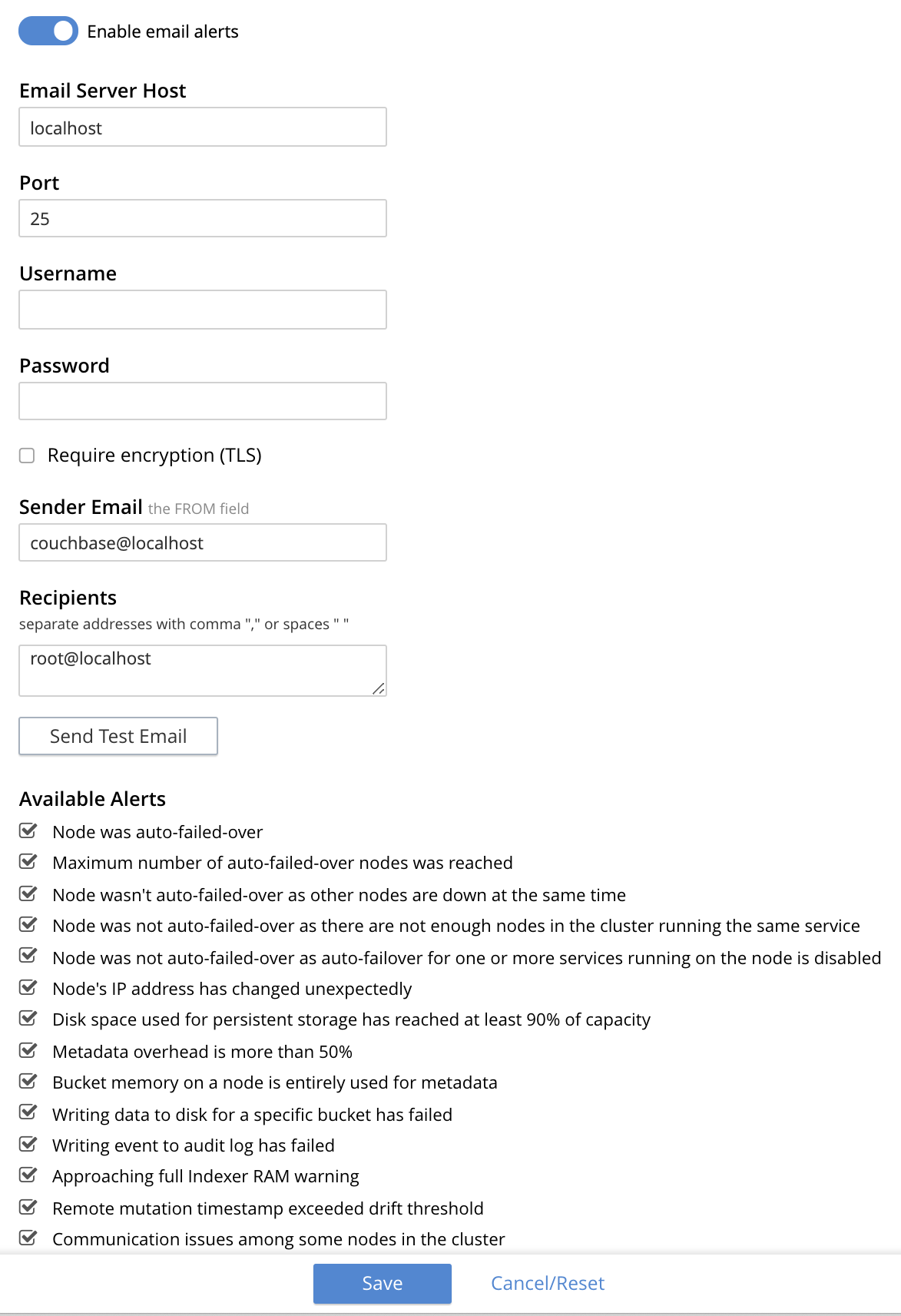

      The Email Alerts panel is now fully displayed, and the user-interface components are accessible. To establish an appropriate email-alerts configuration, first, enter appropriate data into the displayed fields at the left, using the data provided in the Email Settings table, immediately below. Then, proceed to Saving and Testing the Alert Configuration, further below.

      Email Settings

      Option Description

      Email Server Host

      The hostname of the SMTP server that will be used to send the email.

      Port

      The TCP/IP port to be used to communicate with the SMTP server. The default is the standard SMTP port 25.

      Username

      For email servers that require a username and password to send email, the username is used for authentication.

      Password

      For email servers that require a username and password to send email, the password is used for authentication.

      Require encryption (TLS)

      Enable Transport Layer Security (TLS) when sending the email through the designated server.

      Sender Email

      The email address identified as a source from which the email is sent. This email address should be one that is valid as a sender address for the SMTP server that you specify.

      Recipients

      A list of the recipients of each alert message. To specify more than one recipient, separate each address by a space, comma (,), or semicolon (;).

      Send Test Email

      Click Send Test Email to send a test email to confirm the settings and configuration of the email server and recipients.

      Saving and Testing the Alert Configuration

      When you have entered appropriate data into the fields, proceed as follows:

      1. Save the configuration by left-clicking on the Save button at the bottom of the screen:

        saveEmailAlertsConfiguration

        Note that when you left-click on btn[Save], the password that you typed into the Password field becomes invisible, and the field therefore appears blank. This is a security measure imposed by Couchbase Server: the password remains valid, and will be used in authenticating with the email server.

        Alternatively, left-click on Cancel/Reset, to remove the configuration.

      2. Optionally, left-click on the Send Test Email button to send a test email.

      Available Alerts

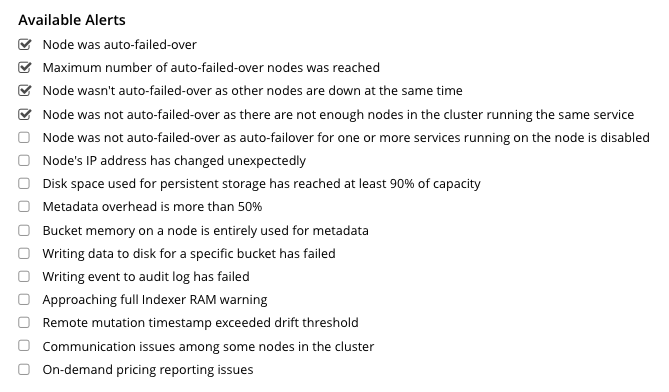

      The Available Alerts panel, at the right, provides a list of all available alerts, and allows you to select, by means of interactive checkboxes, the subset of alert messages that you wish to be sent. You can also select, by checking checkboxes, whether you wish the alert to be sent as Email, or displayed as a UI Popup, or both.

      The listed alerts are as follows.

      Alert Description REST API Name

      Node was auto-failed-over

      The sending node has been failed over automatically.

      auto_failover_node

      Maximum number of auto-failed-over nodes was reached

      The auto-failover system stops auto-failover when the maximum number of spare nodes available has been reached.

      auto_failover_maximum_reached

      Node wasn’t auto-failed-over as other nodes are down at the same time

      Auto-failover does not take place if there is already a node down.

      auto_failover_other_nodes_down

      Node was not auto-failed-over as there are not enough nodes in the cluster running the same service

      You cannot support auto-failover with less than three nodes.

      auto_failover_cluster_too_small

      Node was not auto-failed-over as auto-failover for one or more services running on the node is disabled

      Auto-failover does not take place on a node as one or more services running on the node is disabled.

      auto_failover_disabled

      Node’s IP address has changed unexpectedly

      The IP address of the node has changed, which may indicate a network interface, operating system, or other network or system failure.

      ip

      Disk space used for persistent storage has reached at least 90% of capacity

      The disk device configured for storage of persistent data is nearing full capacity.

      disk

      Metadata overhead is more than 50%

      The amount of data required to store the metadata information for your dataset is now greater than 50% of the available RAM.

      overhead

      Bucket memory on a node is entirely used for metadata

      A vBucket on a node has reached its memory quota. Couchbase Server automatically attempts to recover from this issue.

      ep_oom_errors

      Writing data to disk for a specific bucket has failed

      The disk or device used for persisting data has failed to store persistent data for a bucket.

      ep_item_commit_failed

      Writing event to audit log has failed

      The audit log event writing has failed.

      audit_dropped_events

      Approaching full Indexer RAM warning

      The indexer RAM limit threshold is approaching warning.

      indexer_ram_max_usage

      Remote mutation timestamp exceeded drift threshold

      The remote mutation timestamp exceeded drift threshold warning.

      ep_clock_cas_drift_threshold_exceeded

      Communication issues among some nodes in the cluster

      There are some communication issues in some nodes within the cluster.

      communication_issue

      Node’s time is out of sync with some nodes in the cluster.

      The clock of this cluster-node needs to be synchronized with the clocks of other cluster-nodes.

      time_out_of_sync

      Disk usage analyzer is stuck; cannot fetch disk usage data

      The disk usage worker is stuck and unresponsive.

      disk_usage_analyzer_stuck

      Certificate has expired

      A root, node, or XDCR security certificate has expired.

      cert_expired

      Certificate will expire soon

      A root, node, or XDCR security certificate expires within a warning period. The default warning period is 30 days.

      cert_expires_soon

      Memory usage threshold exceeded

      System memory use as a percentage of total available memory has exceeded a threshold.

      NOTE A warning-level alert is issued when system memory, as a percentage of total available memory, exceeds the warning threshold (90% by default). A critical-level alert is issued when system memory exceeds the critical threshold (95% by default).

      memory_threshold

      History size threshold exceeded

      The mutation history for a specified bucket is greater than an administrator-specified percentage of the administrator-specified change-history size, for a number of vBuckets. The size of the change history may need to be increased. For information, on establishing change-history size, see Creating and Editing Buckets.

      history_size_warning

      Low Indexer Residence Percentage

      Warns that the Index Service is, on a given node, occupying a percentage of available memory that is below an established threshold, the default for which is 10.

      indexer_low_resident_percentage

      Memcached connection threshold exceeded.

      Trigger an alert if the number of system or user connections used by the data service exceeds a configurable percentage of the available connections1. For information on setting the memcached alert thresholds, see Setting alerts.

      memcached_connections

      1The memcached_connections alert is only available on nodes running Couchbase Server 7.2.4 and above. The alert is disabled for nodes running versions below 7.2.4.

      Configure Email Alerts with the CLI

      To configure email alerts with the Couchbase CLI, use the setting-alert command, as follows:

      couchbase-cli setting-alert -c 10.143.192.101 --username Administrator \
      --password password --enable-email-alert 1 --email-user admin \
      --email-password password --email-host mail.couchbase.com --email-port 25 \
      --email-recipients user1@couchbase.com,user2@couchbase.com \
      --email-sender noreply@couchbase.com --enable-email-encrypt 0 \
      --alert-auto-failover-node --alert-auto-failover-max-reached \
      --alert-auto-failover-node-down --alert-auto-failover-cluster-small \
      --alert-memory-threshold

      In this example, cluster 10.143.192.101 is accessed, with administor username and password specified. The enable-email-alert flag is specified as 1, enabling email alerts. Additional flags specify the username and password required by the mail server, as well as email host, port, recipients, and sender. The enable-mail-encrypt flag specifies encryption as off.

      Additional flags are used to indicate which alerts should be sent. Note that every possible alert has a flag: if a flag is not specified, the corresponding alert will not be sent.

      See Email Settings and Available Alerts, above, for descriptions of settings and alerts. See setting-alert for further information on using the CLI, including a full list of command-line parameters.

      Configure Email Alerts with REST

      To configure email alerts with the Couchbase REST API, use the /settings/alerts method, as follows:

      curl -v -X POST http://localhost:8091/settings/alerts \
      -u Administrator:password  \
      -d 'emailPass=password' \
      -d 'alerts=auto_failover_node,auto_failover_maximum_reached,auto_failover_other_nodes_down,auto_failover_cluster_too_small,memory_threshold,memcached_connections' \
      -d 'pop_up_alerts=auto_failover_node,memory_threshold,indexer_ram_max_usage,memcached_connections' \
      -d 'sender=noreply@couchbase.com' \
      -d 'recipients=user1@couchbase.com,user2@couchbase.com' \
      -d 'emailHost=mail.couchbase.com' \
      -d 'emailPort=25' \
      -d 'emailEncrypt=false' \
      -d 'enabled=true'

      This example demonstrates flags that specify mail-server password, sender, recipients, host, and port. Emails settings are enabled with the enabled flag; and encryption is specified as off, by means of the emailEncrypt flag. A list of the alerts that can be sent is provided as the value of the alerts flag. A list of the pop-up alerts that can be sent is provided as the value of the pop_up_alerts flag. See the Rest API Name column of the Available Alerts table for event codes. See Email Settings, above, for a description of available email settings.

      For more information on configuring alerts by means of the REST API, see Setting Alerts.
